150AETOL (1987)
Top Cowling

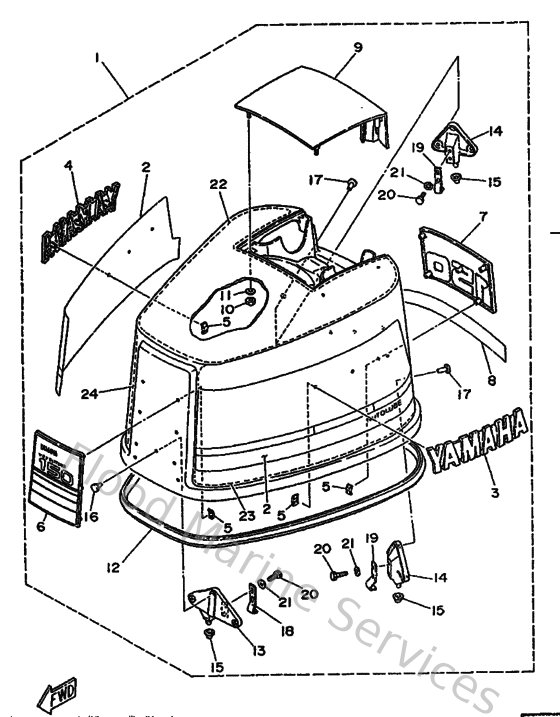

Diagram: Top Cowling
Parts List
Reference
Description
Price
2
6G5W00704100
Graphic Set
Loading…
↗
5
9018305M0100
Nut, spring (6a0)
Loading…
↗
6
6G4426860000
Emblem, Front
Loading…
↗
7
6G4426870000
Emblem, Rear
Loading…
↗
10
953800660000
Nut(661)
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
6E5426150000
Seal
Loading…
↗
13
6E5426470094
Holder, clamp band
Loading…
↗
14
6E5426490194
Holder, clamp band
Loading…
↗
15
663426620000
Damper
Loading…
↗
16
902660600900
Rivet (697)
Loading…
↗
17
9026606M0200
Rivet (697)
Loading…
↗
18
688426520000
Hook 2
Loading…
↗
19
6E5426520000
Hook 2
Loading…
↗
20
970950601600
Bolt, hexagon deep recess
Loading…
↗
22
6E5426170000
Damper 1
Loading…
↗
23
6G5426190000
Damper (400x1000)
Loading…
↗
24
6G5426270000
Damper (400x1000)
Loading…
↗
