150AETOL (2001)
Top Cowling

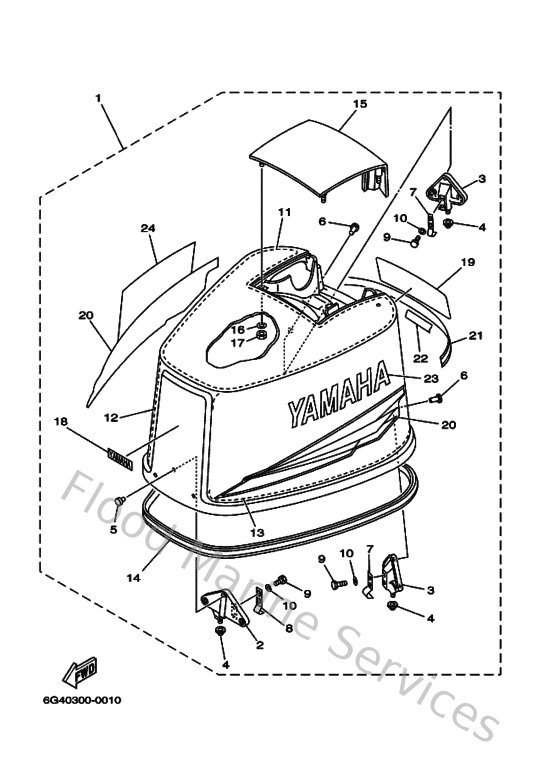

Diagram: Top Cowling
Parts List
Reference
Description
Price
2
6E5426470094
Holder, clamp band
Loading…
↗
3
6E5426490194
Holder, clamp band
Loading…
↗
4
663426620000
Damper
Loading…
↗
5
902660600900
Rivet (697)
Loading…
↗
6
9026606M0200
Rivet (697)
Loading…
↗
7
6E5426520000
Hook 2
Loading…
↗
8
688426520000
Hook 2
Loading…
↗
9
970950601600
Bolt, hexagon deep recess
Loading…
↗
10
929950660000
Washer, plain (646)
Loading…
↗
11
6E5426170000
Damper 1
Loading…
↗
12
689W42665000
Damper (400x1000)
Loading…
↗
13
6G5426270000
Damper (400x1000)
Loading…
↗
14
6E5426150000
Seal
Loading…
↗
15
6G542613004D
Molding, air duct
Loading…
↗
16
929900660000
Washer, plain (646)
Loading…
↗
17
953800660000
Nut(661)
Loading…
↗
18
68842677D000
Graphic, front
Loading…
↗
19
6G4426783100
Graphic, rear
Loading…
↗
20
6G5W00703100
Graphic Set
Loading…
↗
21
6G54267A3100
Graphic, Rear 2
Loading…
↗
22
64D426783000
Graphic, Rear
Loading…
↗
23
6G5426813100
Mark, cowling
Loading…
↗
24
6G5426823100
Mark, Cowling
Loading…
↗
