20DMHO (1997)
Top Cowling

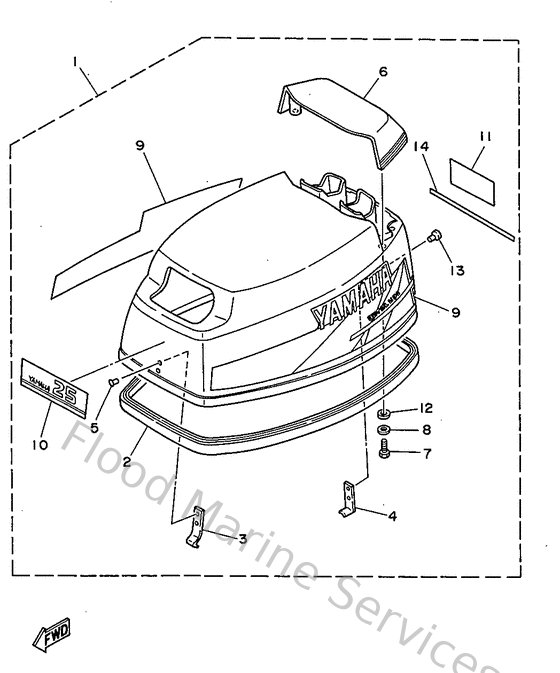

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
6L242610614D
Top Cowling assembly
Loading…
↗
2
6L2426150000
Seal
Loading…
↗
3
6G1426517100
Hook
Loading…
↗
4
6L2426470000
Holder, clamp band
Loading…
↗
5
9026604M0000
Rivet 2 (662)
Loading…
↗
6
6L242613018D
Molding, Air Duct
Loading…
↗
7
970950601600
Bolt, hexagon deep recess
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
12
9020205M3800
Washer, plate(6l2)
Loading…
↗
13
9026604M0400
Rivet(6e7)
Loading…
↗
