220AETL (1985)
Top Cowling

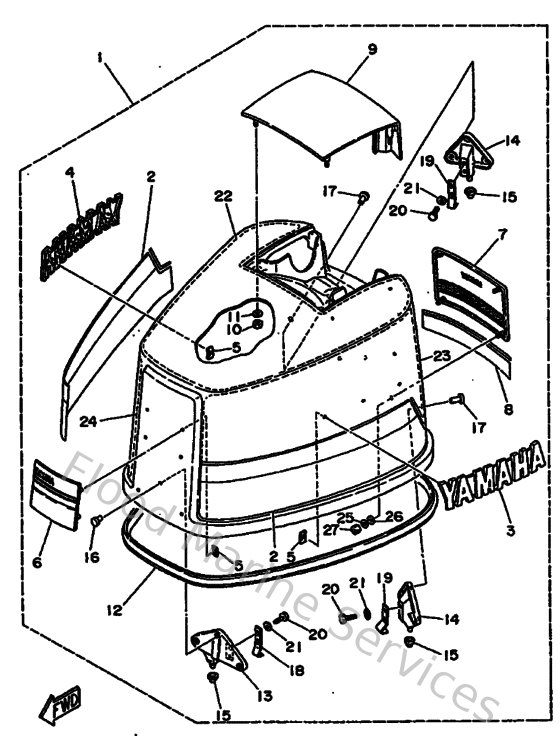

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
6G742610A0EK
Top Cowling assembly
Loading…
↗
5
9018305M0100
Nut, spring (6a0)
Loading…
↗
9
6G54261300EK
Molding, Air Duct
Loading…
↗
10
953900660000
Nut(661)
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
6E5426150000
Seal
Loading…
↗
13
6E542647001S
Holder, clamp band
Loading…
↗
15
663426620000
Damper
Loading…
↗
16
902660600900
Rivet (697)
Loading…
↗
17
9026606M0200
Rivet (697)
Loading…
↗
18
688426521000
Hook 2
Loading…
↗
19
6E5426520000
Hook 2
Loading…
↗
20
973950601600
Bolt, hexagon deep recess
Loading…
↗
22
6E5426170000
Damper 1
Loading…
↗
23
689W42665000
Damper (400x1000)
Loading…
↗
24
6G5426270000
Damper (400x1000)
Loading…
↗
25
902020605800
Washer, plate (8a4)
Loading…
↗
26
902010606800
Washer,plate (6k8)
Loading…
↗
