225BETOL (1993)
Top Cowling

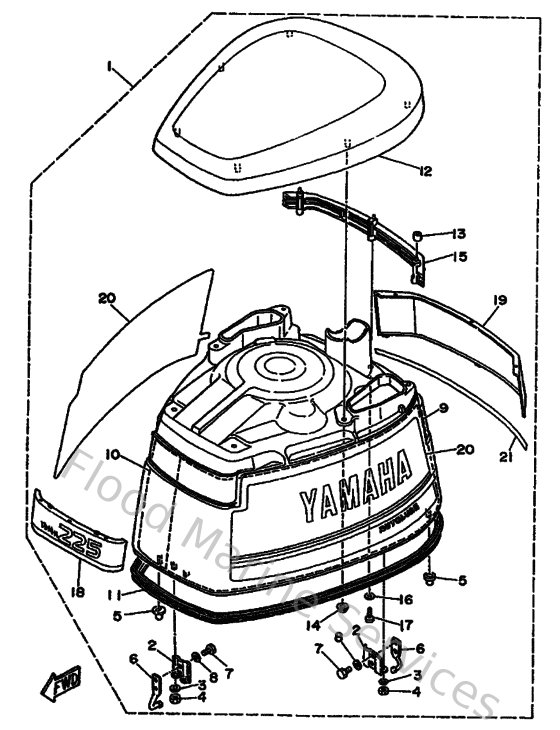

Diagram: Top Cowling
Parts List
Reference
Description
Price
2
6R3426470000
Holder, clamp band
Loading…
↗
3
929900610000
Washer(6a1)
Loading…
↗
4
953800660000
Nut(661)
Loading…
↗
5
6R3426620000
Damper
Loading…
↗
6
6R3428140000
Hook, clamp
Loading…
↗
7
973950601200
Bolt(gh1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
11
6R3426150100
Seal
Loading…
↗
13
9038504M0500
Bush(6r2)
Loading…
↗
14
9017906M2400
Nut(6j8)
Loading…
↗
15
6R3426360000
Louver 2
Loading…
↗
16
929900460000
Washer, plain (646)
Loading…
↗
17
977804012000
Ybs83-420 screw,panh,tapping
Loading…
↗
