225DETOL (1996)
Top Cowling

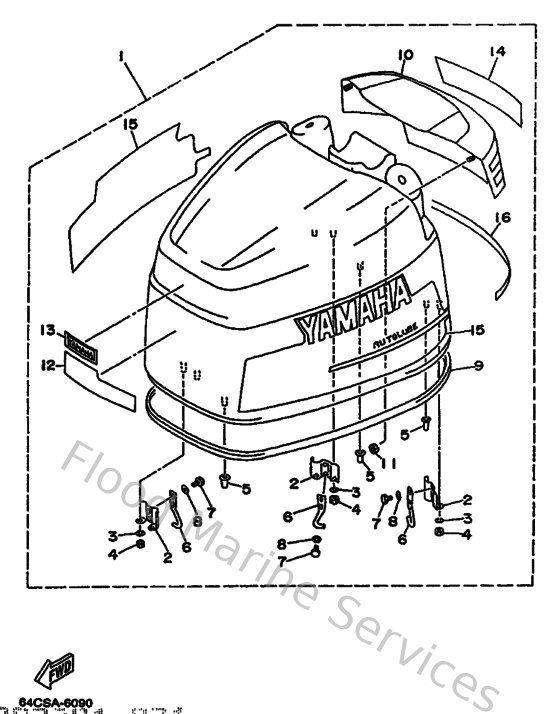

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
64F42610A04D
Top Cowling assembly
Loading…
↗
2
6R3426470000
Holder, clamp band
Loading…
↗
3
929950610000
Washer(6a1)
Loading…
↗
4
953800660000
Nut(661)
Loading…
↗
5
6R3426620000
Damper
Loading…
↗
6
64D428140000
Hook, clamp
Loading…
↗
7
970800601200
Bolt(gh1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
64D426150000
Seal
Loading…
↗
10
64D42613004D
Molding, air duct
Loading…
↗
13
64D42677A000
Graphic, front
Loading…
↗
14
64F426870000
Emblem, Rear
