30AMH (1985)
Top Cowling

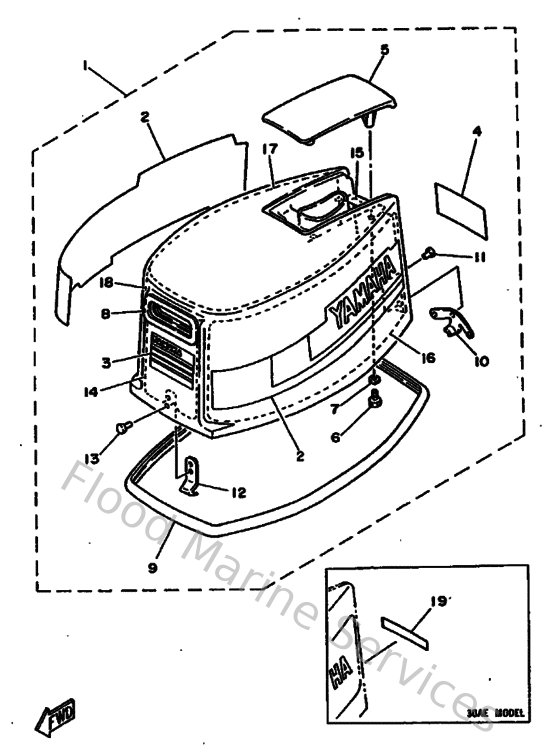

Diagram: Top Cowling
Parts List
Reference
Description
Price
2
689W00702300
Graphic Set
Loading…
↗
3
689426770100
Graphic, Front
Loading…
↗
5
6894261300EJ
Molding, Air Duct
Loading…
↗
6
970130601200
Bolt(gh1)
Loading…
↗
7
929030660000
Washer, plain (646)
Loading…
↗
8
689157610000
Seal 1
Loading…
↗
9
6G0426150000
Seal
Loading…
↗
10
689426470000
Holder, clamp band
Loading…
↗
11
9026604M0100
Rivet (689)
Loading…
↗
12
689426510000
Hook 1
Loading…
↗
13
9026604M0000
Rivet 2 (662)
Loading…
↗
14
689426620100
Damper 1
Loading…
↗
15
689426630100
Damper 2
Loading…
↗
17
689426650000
Damper 4
Loading…
↗
18
689426660000
Damper 5
Loading…
↗
