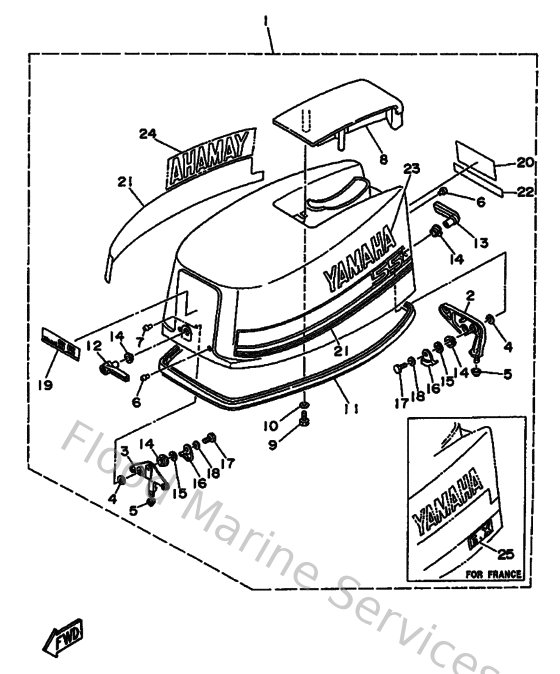

Diagram: Top Cowling

Diagram

Parts List

Reference
Description
Price


2
697426470094
Holder, clamp band
Loading…

↗
4
9020219M1000
Washer, plate (697)
Loading…

↗
5
663426620000
Damper
Loading…

↗
6
9026606M0200
Rivet (697)
Loading…

↗
8
69742613004D
Molding, air duct
Loading…

↗
11
663426150200
Seal
Loading…

↗
12
697428151198
Lever, clamp 1
Loading…

↗
13
697428171098
Lever, clamp 3
Loading…

↗
14
9038613M3800
Bushing (697)
Loading…

↗
15
902061301900
Washer, wave 6264283200
Loading…

↗
16
663428160200
Lever, clamp 2
Loading…

↗
17
970950601200
Bolt(gh1)
Loading…

↗
18
9020106M0200
Washer,plate (6k8)
Loading…

↗
21
697W00703000
Graphic Set
Loading…

↗
24
697426823000
Mark, Cowling
Loading…

↗
