55BM (2001)
Top Cowling

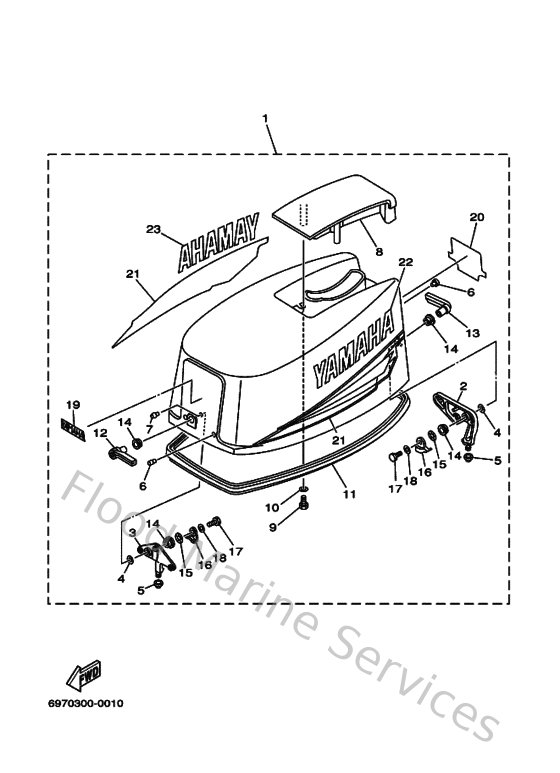

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
69742610C04D
Top cowling assembly
Loading…
↗
2
697426470094
Holder, clamp band
Loading…
↗
3
697426490094
Holder, clamp band
Loading…
↗
4
9020219M1000
Washer, plate (697)
Loading…
↗
5
663426620000
Damper
Loading…
↗
6
902660600900
Rivet (697)
Loading…
↗
7
9026606M0200
Rivet (697)
Loading…
↗
8
69742613014D
Molding, air duct
Loading…
↗
9
970950601600
Bolt, hexagon deep recess
Loading…
↗
10
929950660000
Washer, plain (646)
Loading…
↗
11
663426150200
Seal
Loading…
↗
12
697428151198
Lever, clamp 1
Loading…
↗
13
697428171198
Lever, clamp 3
Loading…
↗
14
9038613M3800
Bushing (697)
Loading…
↗
15
902061301900
Washer, wave 6264283200
Loading…
↗
16
663428160200
Lever, clamp 2
Loading…
↗
17
970950601200
Bolt(gh1)
Loading…
↗
18
9020106M0200
Washer,plate (6k8)
Loading…
↗
19
69542677B100
Graphic, front
Loading…
↗
20
697426783000
Graphic, rear
Loading…
↗
21
697W00703100
Graphic Set
Loading…
↗
22
697426813100
Mark Cowling
Loading…
↗
23
697426823100
Mark Cowling
Loading…
↗
