6DMH (2001)
Top Cowling

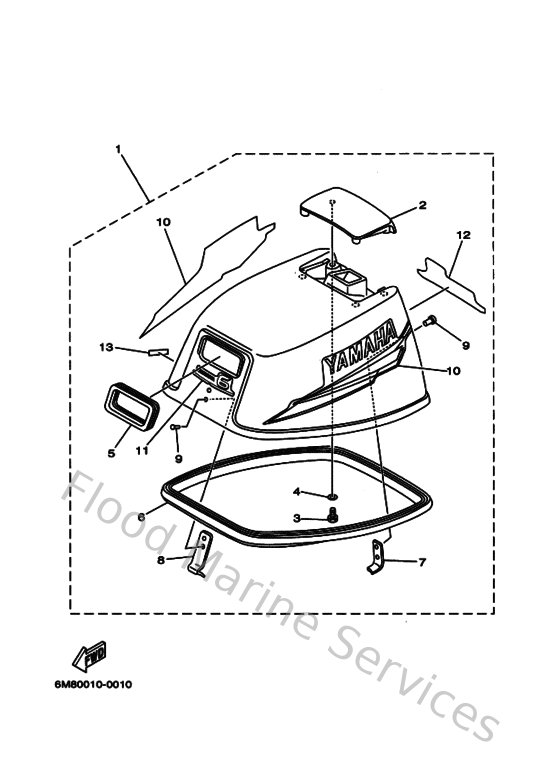

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
6M8G2610114D
Top Cowling Assembly
Loading…
↗
2
6N0G2613004D
Molding air duct
Loading…
↗
3
970950601600
Bolt, hexagon deep recess
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
5
6G1157610000
Seal 1
Loading…
↗
6
6N0G26150000
Seal
Loading…
↗
7
6G1426470000
Holder, clamp band
Loading…
↗
8
6N0G26510000
Hook 1
Loading…
↗
9
9026604M0000
Rivet 2 (662)
Loading…
↗
10
6G1W00701400
Graphic set
Loading…
↗
11
6M8G26771100
Graphic, front
Loading…
↗
12
6M8G26781100
Graphic, rear
Loading…
↗
13
6E0441911100
Indicator, shift
Loading…
↗
