70BETO (1986)
Top Cowling

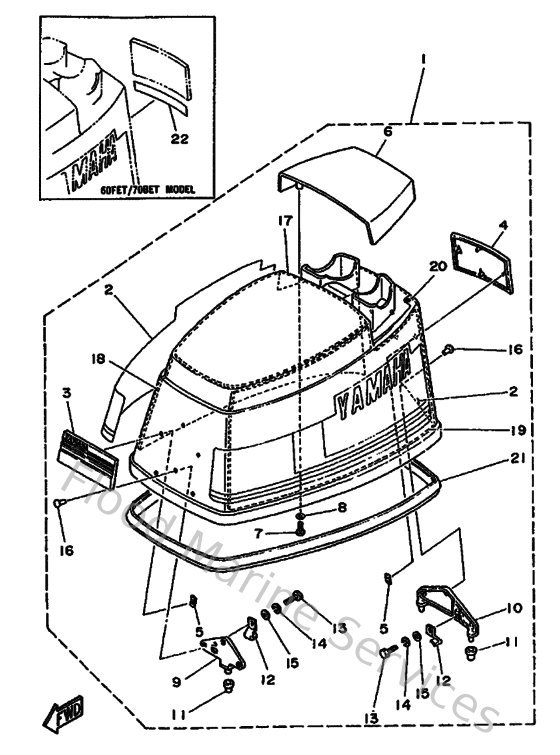

Diagram: Top Cowling
Parts List
Reference
Description
Price
5
9018305M0100
Nut, spring (6a0)
Loading…
↗
7
973130601600
Bolt, hexagon deep recess
Loading…
↗
8
929030660000
Washer, plain (646)
Loading…
↗
9
6H3426470094
Holder, clamp band
Loading…
↗
10
6H3426490000
Holder, clamp band
Loading…
↗
11
663426620000
Damper
Loading…
↗
12
6H3426520000
Hook 2
Loading…
↗
14
929950610000
Washer(6a1)
Loading…
↗
16
902660600900
Rivet (697)
Loading…
↗
17
6H3426170000
Damper, Form
Loading…
↗
18
689W42664000
Damper (350x640)
Loading…
↗
19
6H3426270000
Damper (350x640)
Loading…
↗
20
6H3426370000
Damper, Form
Loading…
↗
21
6H3426150000
Seal
