80AETOL (1988)
Top Cowling

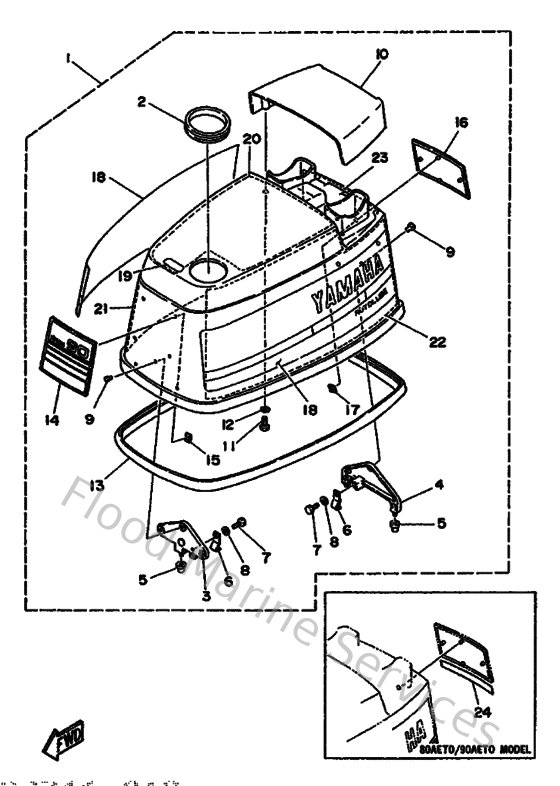

Diagram: Top Cowling
Parts List
Reference
Description
Price
2
6H1217320000
Seal 1
Loading…
↗
3
6H1426470094
Holder, clamp band
Loading…
↗
4
6H1426490094
Holder, clamp band
Loading…
↗
5
663426620000
Damper
Loading…
↗
6
688426521000
Hook 2
Loading…
↗
7
973130601600
Bolt, hexagon deep recess
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
9026606M0200
Rivet (697)
Loading…
↗
13
688426150000
Seal
Loading…
↗
15
9018305M0100
Nut, spring (6a0)
Loading…
↗
20
689W42662000
Damper, Form
Loading…
↗
21
689W42664000
Damper (350x640)
Loading…
↗
23
689W42661000
Damper, Form
Loading…
↗
