85AET (1990)
Top Cowling

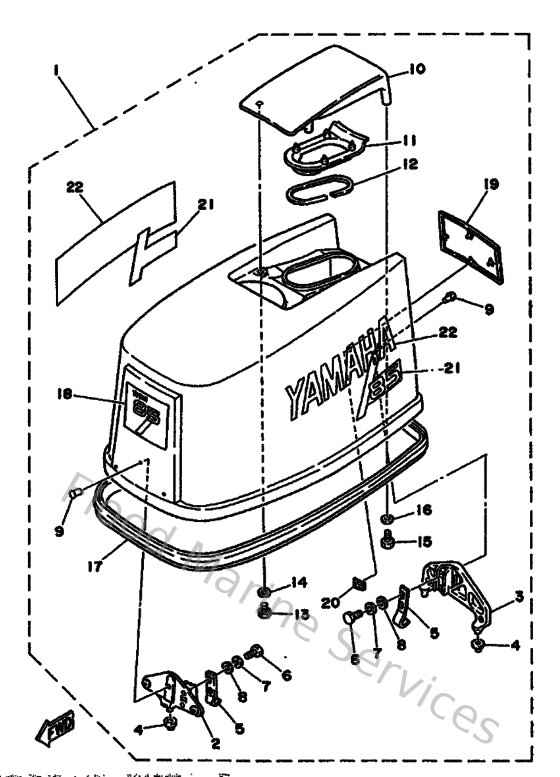

Diagram: Top Cowling
Parts List
Reference
Description
Price
2
688426470094
Holder, clamp band
Loading…
↗
3
688426490094
Holder, clamp band
Loading…
↗
4
663426620000
Damper
Loading…
↗
5
688426521000
Hook 2
Loading…
↗
6
970800601800
Bolt (fj0)
Loading…
↗
7
929900610000
Washer(6a1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
9026606M0200
Rivet (697)
Loading…
↗
11
688426180000
Air shroud, top cowling
Loading…
↗
12
688426280000
Seal 1
Loading…
↗
13
973950601600
Bolt, hexagon deep recess
Loading…
↗
15
9010106M2700
Bolt
Loading…
↗
17
688426150000
Seal
Loading…
↗
19
688426876000
Emblem, Rear
Loading…
↗
20
9018305M0100
Nut, spring (6a0)
Loading…
↗
