85AET (2000)
Top Cowling

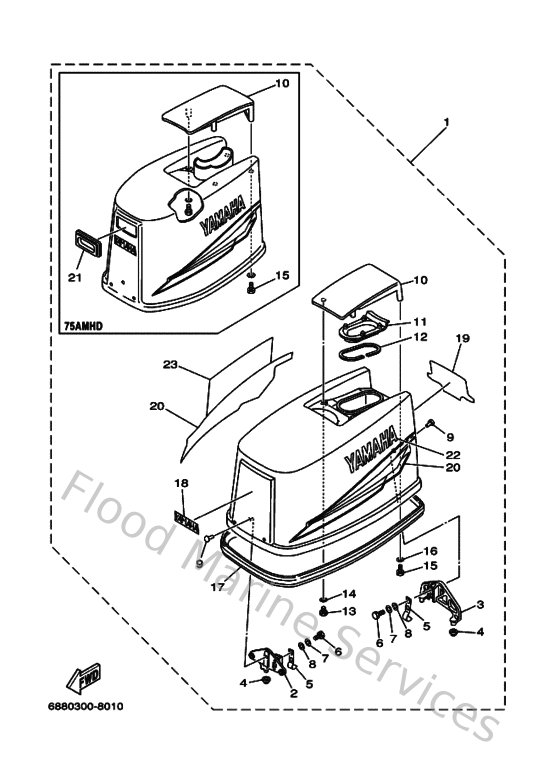

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
69242610C04D
Top Cowling assembly
Loading…
↗
2
688426470094
Holder, clamp band
Loading…
↗
3
688426490094
Holder, clamp band
Loading…
↗
4
663426620000
Damper
Loading…
↗
5
688426521000
Hook 2
Loading…
↗
6
970800601800
Bolt (fj0)
Loading…
↗
7
929950610000
Washer(6a1)
Loading…
↗
8
929950660000
Washer, plain (646)
Loading…
↗
9
902660600900
Rivet (697)
Loading…
↗
10
68842613014D
Molding, air duct
Loading…
↗
11
688426180000
Air shroud, top cowling
Loading…
↗
12
688426280000
Seal 1
Loading…
↗
13
970950601600
Bolt, hexagon deep recess
Loading…
↗
15
970950602500
Bolt
Loading…
↗
17
688426150000
Seal
Loading…
↗
18
68842677C000
Graphic, front
Loading…
↗
19
688426783100
Graphic, rear
Loading…
↗
20
688W00703100
Graphic set
Loading…
↗
22
688426813100
Mark Cowling
Loading…
↗
23
688426823100
Mark, Cowling
Loading…
↗
