90AETOL (2001)
Top Cowling

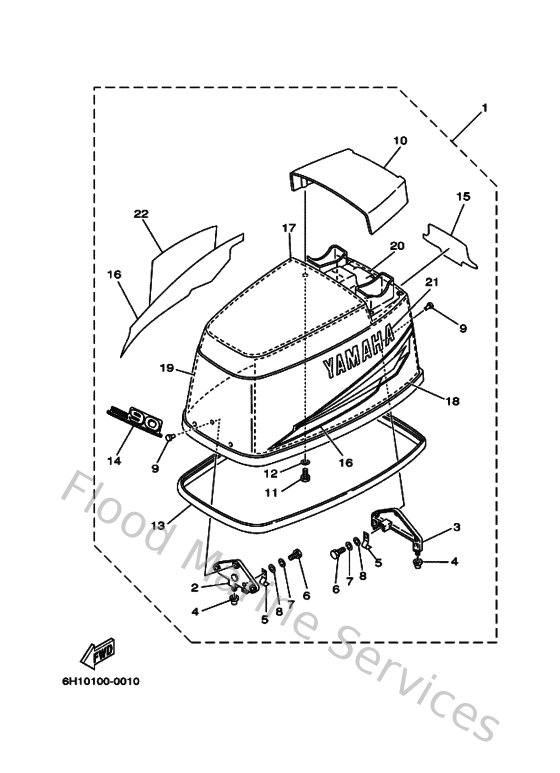

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
6H142610G44D
Top Cowling Assembly
Loading…
↗
2
6H1426470094
Holder, clamp band
Loading…
↗
3
6H1426490094
Holder, clamp band
Loading…
↗
4
663426620000
Damper
Loading…
↗
5
688426521000
Hook 2
Loading…
↗
6
970950601600
Bolt, hexagon deep recess
Loading…
↗
7
929950610000
Washer(6a1)
Loading…
↗
8
929950660000
Washer, plain (646)
Loading…
↗
9
902660600900
Rivet (697)
Loading…
↗
10
6H142613014D
Molding air duct
Loading…
↗
12
929900660000
Washer, plain (646)
Loading…
↗
13
688426150000
Seal
Loading…
↗
14
6H1426773000
Graphic, front
Loading…
↗
15
6H1426783000
Graphic, front
Loading…
↗
16
6H1W00703000
Graphic set
Loading…
↗
17
689W42662000
Damper, Form
Loading…
↗
18
6H1426190000
Damper (350x640)
Loading…
↗
19
6H1426270000
Damper (350x640)
Loading…
↗
20
6H1426370000
Damper, Form 4
Loading…
↗
21
6H1426813000
Mark Cowling
Loading…
↗
22
6H1426823000
Mark Cowling
Loading…
↗
