D150HETO (2001)
Top Cowling

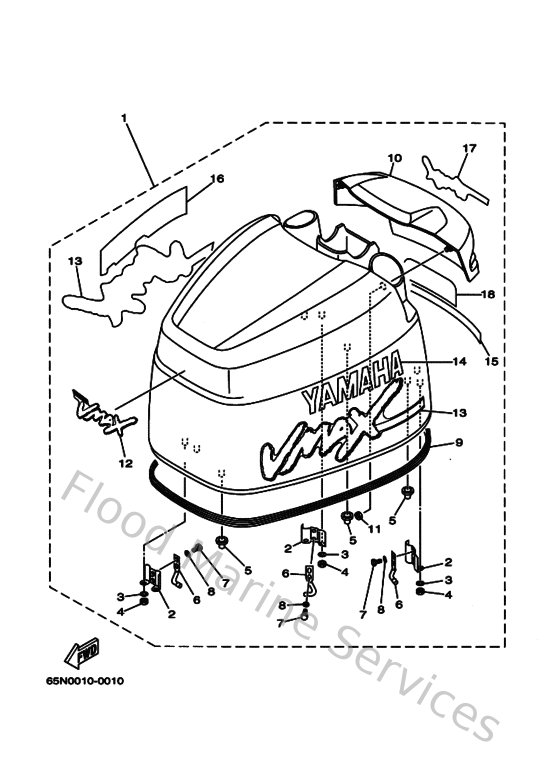

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
65N42610N2NA
Top Cowling assembly
Loading…
↗
2
6R3426470000
Holder, clamp band
Loading…
↗
3
929900610000
Washer(6a1)
Loading…
↗
4
953800660000
Nut(661)
Loading…
↗
5
64D426620000
Damper
Loading…
↗
6
64D428140000
Hook, clamp
Loading…
↗
7
970950601200
Bolt(gh1)
Loading…
↗
8
929950660000
Washer, plain (646)
Loading…
↗
9
64D426150000
Seal
Loading…
↗
10
65N42613003P
Molding, Air Duct
Loading…
↗
11
9017906M2400
Nut(6j8)
Loading…
↗
12
65N42677N000
Graphic, front
Loading…
↗
13
65NW0070N100
Graphic Set
Loading…
↗
14
65N42681N000
Mark, cowling
Loading…
↗
15
65N4267AN000
Graphic, rear 2
Loading…
↗
16
65N42682N000
Mark, cowling
Loading…
↗
17
65N42678N000
Graphic, front
Loading…
↗
18
65N42683N000
Mark, Cowling
Loading…
↗
