Yamaha Outboard Parts - Top Cowling - E60HELH (2000) | Flood Marine
New Search
Parts
New Outboards
Home
E60HELH (2000)
Top Cowling

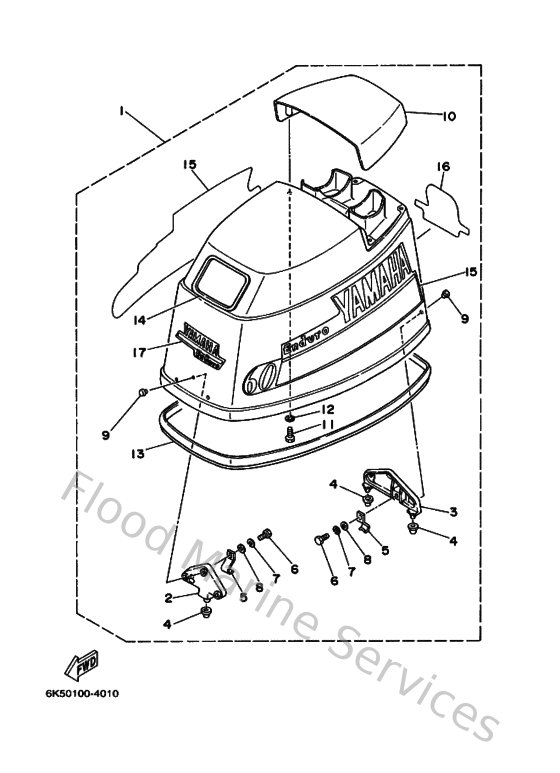

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
6K542610H14D
Top cowling assembly
Loading…
↗
2
6H3426470094
Holder, clamp band
Loading…
↗
3
6H3426490094
Holder, clamp band
Loading…
↗
4
663426620000
Damper
Loading…
↗
5
6H3426520000
Hook 2
Loading…
↗
6
970950601600
Bolt, hexagon deep recess
Loading…
↗
7
929950610000
Washer(6a1)
Loading…
↗
8
929950660000
Washer, plain (646)
Loading…
↗
9
9026606M0200
Rivet (697)
Loading…
↗
10
6H342613014D
M0lding air duct
Loading…
↗
13
6H3426150000
Seal
Loading…
↗
14
6K5157610000
Seal, rubber 1
Loading…
↗
15
6K5W0070H000
Graphic Set
Loading…
↗
16
6K542678H000
Graphic, rear
Loading…
↗
