E60HM (2001)
Top Cowling

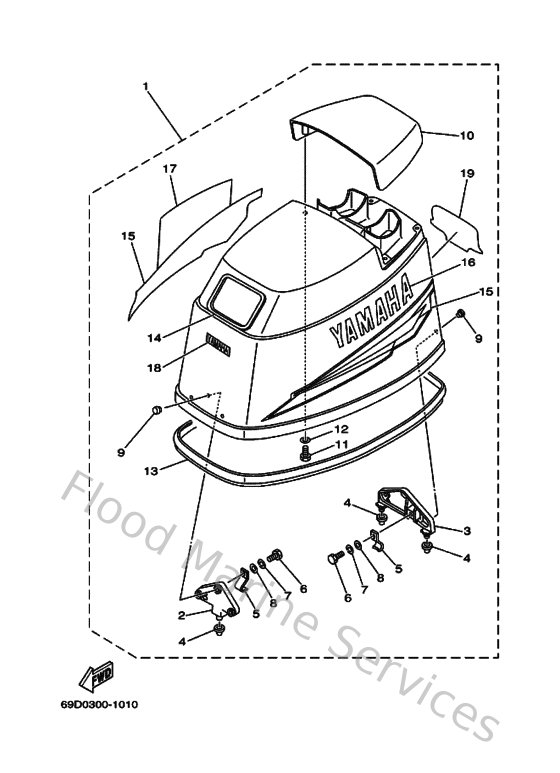

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
6K542610B04D
Top Cowling assembly
Loading…
↗
2
6H3426470094
Holder, clamp band
Loading…
↗
3
6H3426490094
Holder, clamp band
Loading…
↗
4
663426620000
Damper
Loading…
↗
5
6H3426520000
Hook 2
Loading…
↗
6
970950601600
Bolt, hexagon deep recess
Loading…
↗
7
929950610000
Washer(6a1)
Loading…
↗
8
929950660000
Washer, plain (646)
Loading…
↗
9
9026606M0200
Rivet (697)
Loading…
↗
10
6H342613014D
M0lding air duct
Loading…
↗
13
6H3426150000
Seal
Loading…
↗
14
6K5157610000
Seal, rubber 1
Loading…
↗
15
6H3W00703000
Graphic set
Loading…
↗
16
6H3426813000
Mark, cowling
Loading…
↗
17
6H3426823000
Mark, cowling
Loading…
↗
18
68842677C000
Graphic, front
Loading…
↗
19
6H2426783000
Graphic, front
Loading…
↗
