L200FETOL (1998)
Top Cowling

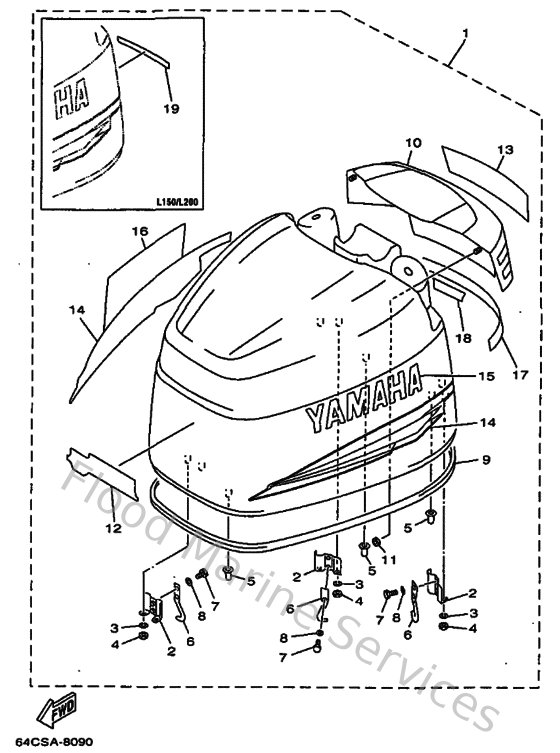

Diagram: Top Cowling
Parts List
Reference
Description
Price
1
64C42610304D
Top Cowling Assembly
Loading…
↗
2
6R3426470000
Holder, clamp band
Loading…
↗
3
929950610000
Washer(6a1)
Loading…
↗
4
953800660000
Nut(661)
Loading…
↗
5
6R3426620000
Damper
Loading…
↗
6
64D428140000
Hook, clamp
Loading…
↗
7
970950601200
Bolt(gh1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
64D426150000
Seal
Loading…
↗
10
64D42613008D
Molding, air duct
Loading…
↗
11
9017906M2400
Nut(6j8)
Loading…
↗
12
64D426773000
Graphic, Front
Loading…
↗
13
64E426873000
Emblem, rear
Loading…
↗
14
64DW00703000
Graphic Set
Loading…
↗
15
64C426813000
Mark, cowling
Loading…
↗
16
64C426823000
Mark, cowling
Loading…
↗
17
64D4267A3000
Graphic, rear 2
Loading…
↗
18
64D426783000
Graphic, Rear
Loading…
↗
19
6R142678G000
Graphic, Rear
Loading…
↗
