Yamaha Outboard Parts - Top Cowling - P200ETOL (1992) | Flood Marine

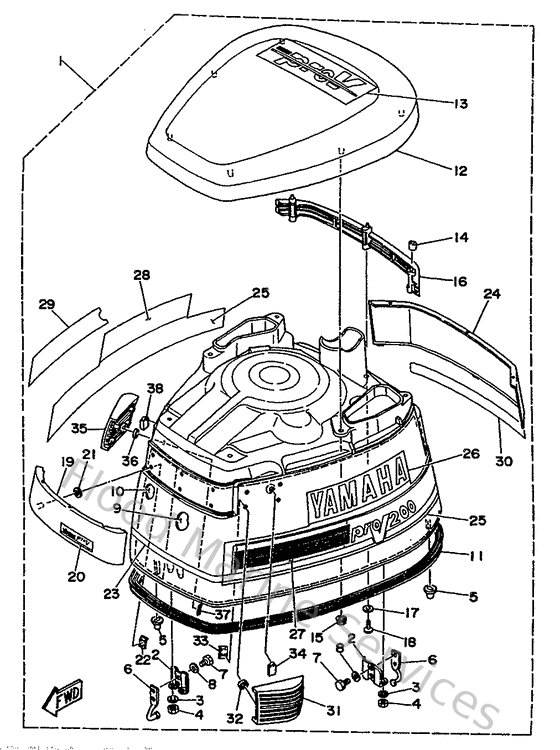

Diagram: Top Cowling

Diagram

Parts List

Reference
Description
Price


2
6R3426470000
Holder, clamp band
Loading…

↗
3
929900610000
Washer(6a1)
Loading…

↗
4
953800660000
Nut(661)
Loading…

↗
5
6R3426620000
Damper
Loading…

↗
6
6R3428140000
Hook, clamp
Loading…

↗
7
973950601200
Bolt(gh1)
Loading…

↗
8
929900660000
Washer, plain (646)
Loading…

↗
11
6R3426150100
Seal
Loading…

↗
14
9038504M0500
Bush(6r2)
Loading…

↗
15
9017906M2400
Nut(6j8)
Loading…

↗
16
6R3426360000
Louver 2
Loading…

↗
17
929900460000
Washer, plain (646)
Loading…

↗
18
977804012000
Ybs83-420 screw,panh,tapping
Loading…

↗
21
9043005M0600
Gasket
Loading…

↗
22
9018305M0100
Nut, spring (6a0)
Loading…

↗
31
6N9426880000
Emblem, Side 1
Loading…

↗
