Yamaha Outboard Parts - Top Cowling - Z150Q (2000) | Flood Marine

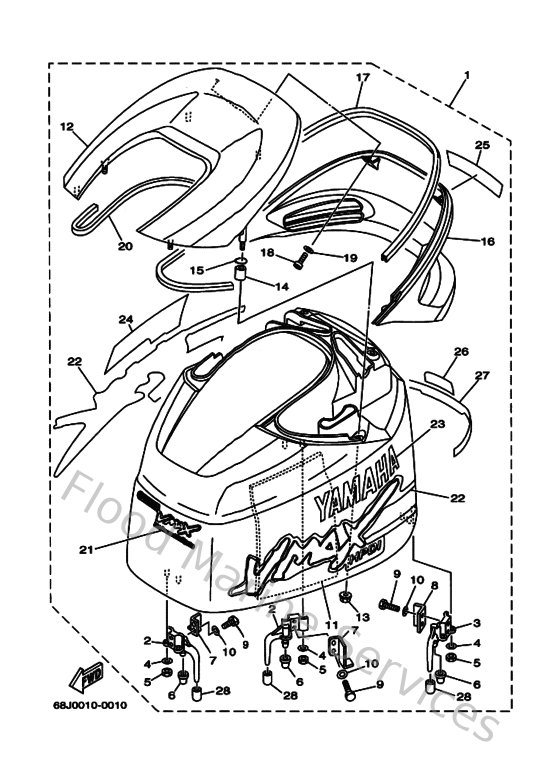

Diagram: Top Cowling

Diagram

Parts List

Reference
Description
Price


1
68J42610N0NA
Top cowling assembly
Loading…

↗
2
68F426470094
Holder, clamp band
Loading…

↗
3
68F426480094
Holder, clamp band
Loading…

↗
4
929900610000
Washer(6a1)
Loading…

↗
5
953800660000
Nut(661)
Loading…

↗
6
68F426630000
Damper 2
Loading…

↗
7
68F426510000
Hook
Loading…

↗
8
67F426520000
Hook
Loading…

↗
9
970950601600
Bolt, hexagon deep recess
Loading…

↗
10
929950660000
Washer, plain (646)
Loading…

↗
11
68F426190000
Damper, form
Loading…

↗
12
68J42613003P
Molding, air duct
Loading…

↗
13
9017906M2400
Nut(6j8)
Loading…

↗
14
903870601100
Collar
Loading…

↗
15
932100627000
O-ring
Loading…

↗
16
68J42636003P
Louver 2
Loading…

↗
17
68J426620000
Damper
Loading…

↗
18
977805061600
Screw, pan head tapping (ak5)
Loading…

↗
19
929900520000
Ybs66-5 washer, plain
Loading…

↗
20
68F426620000
Damper
Loading…

↗
21
68J42677N000
Graphic, front
Loading…

↗
22
68JW0070N000
Graphic set
Loading…

↗
23
68J42681N000
Mark, cowling
Loading…

↗
24
68J42682N000
Mark, cowling
Loading…

↗
25
68J42683N000
Mark, cowling
Loading…

↗
26
68J42678N000
Graphic, rear
Loading…

↗
27
68J4267AN000
Graphic, rear 2
Loading…

↗
28
67F134480000
Cap
Loading…

↗
