Z200NETO (2000)
Top Cowling

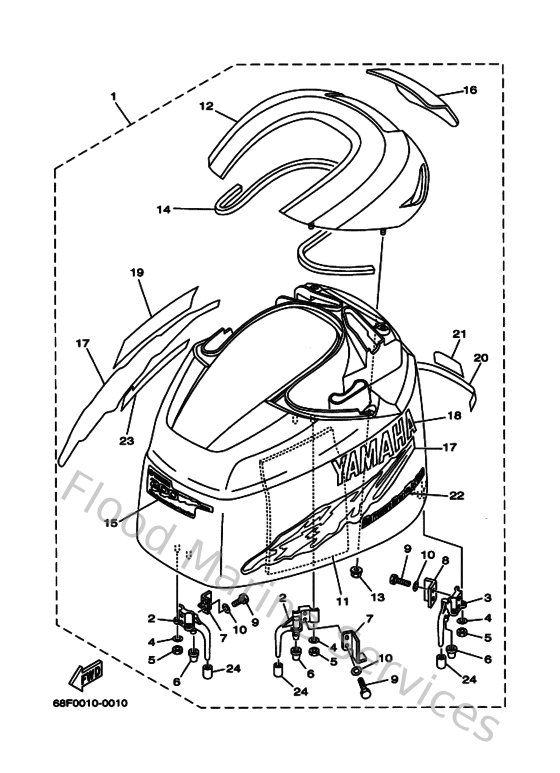

Diagram: Top Cowling
Parts List
Reference
Description
Price
2
68F426470094
Holder, clamp band
Loading…
↗
3
68F426480094
Holder, clamp band
Loading…
↗
4
929900610000
Washer(6a1)
Loading…
↗
5
953800660000
Nut(661)
Loading…
↗
6
68F426630000
Damper 2
Loading…
↗
7
68F426510000
Hook
Loading…
↗
8
67F426520000
Hook
Loading…
↗
9
970950601600
Bolt, hexagon deep recess
Loading…
↗
10
929950660000
Washer, plain (646)
Loading…
↗
11
68F426190000
Damper, form
Loading…
↗
12
68F42613008D
Molding, air duct
Loading…
↗
13
9017906M2400
Nut(6j8)
Loading…
↗
14
68F426620000
Damper
Loading…
↗
15
68F426774000
Graphic, front
Loading…
↗
16
68F426870000
Emblem, Rear
Loading…
↗
17
68FW00704000
Graphic Set
Loading…
↗
18
992410032000
Emblem, yamaha
Loading…
↗
19
68F426824000
Emblem, yamaha
Loading…
↗
20
68F4267A4000
Graphic, Rear 2
Loading…
↗
21
68F426784000
Graphic, front
Loading…
↗
22
68F426834000
Mark, Cowling
Loading…
↗
23
68F426844000
Mark, Cowling
Loading…
↗
24
67F134480000
Cap
Loading…
↗
