115BETO (1998)
UPPER CASING

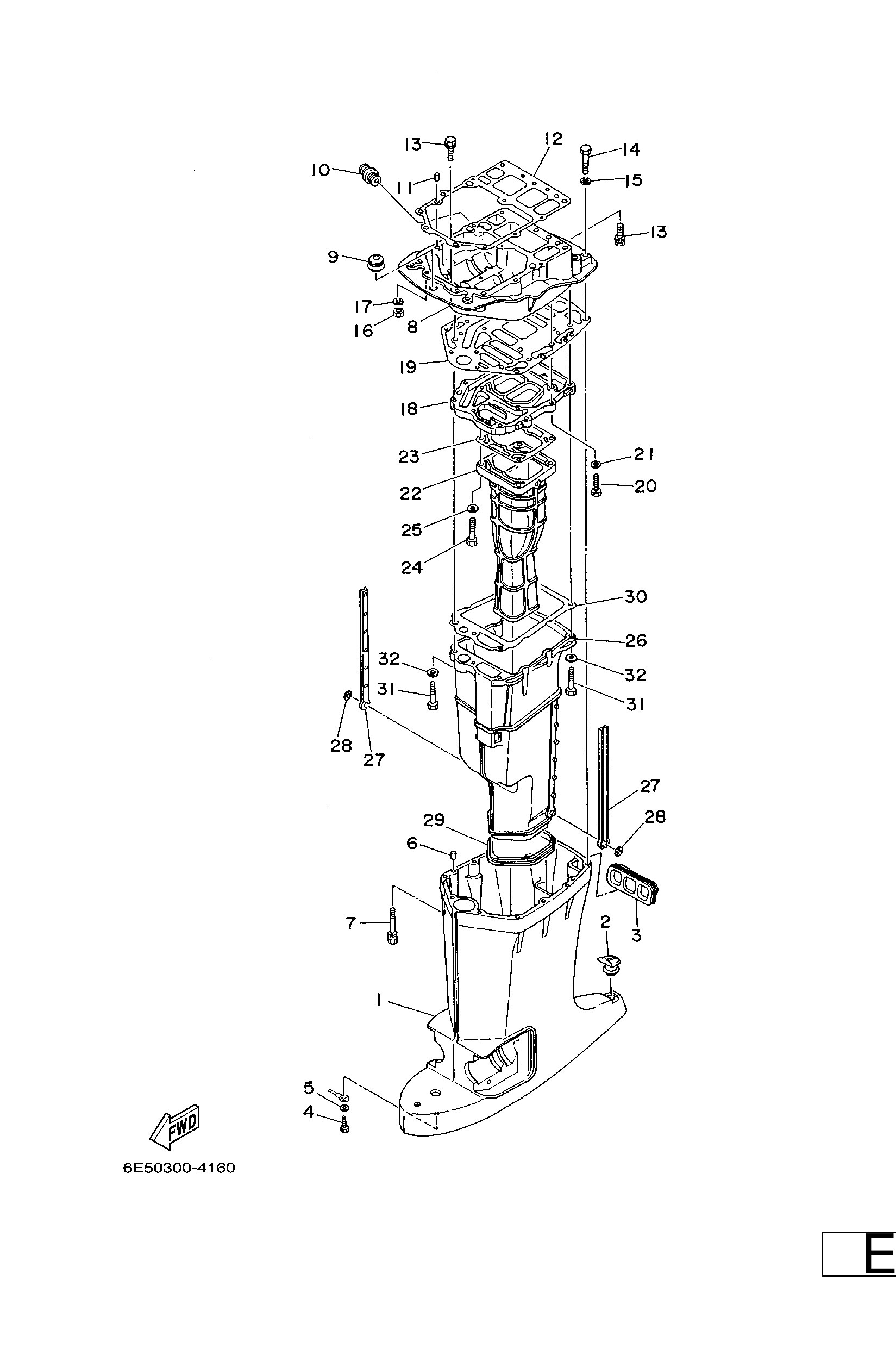

Diagram: UPPER CASING
Parts List
Reference
Description
Price
2
6E54515500
Cap
Loading…
↗
3
6E54276900
Seal, rubber
Loading…
↗
4
9709506010
Bolt
Loading…
↗
5
9299006600
Washer, plain (646)
Loading…
↗
6
9360812M05
Pin, dowel b (6e5)
Loading…
↗
7
9011908M78
Bolt, with washer
Loading…
↗
9
6E54272400
Grommet
Loading…
↗
10
6G51258100
Joint, hose
Loading…
↗
12
6G545113A1
Gasket, upper casing
Loading…
↗
13
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
14
9709508045
Bolt, hexagon
Loading…
↗
15
9299008100
Ybs67-8 washer, spring
Loading…
↗
16
9538008700
Nut(661)
Loading…
↗
17
9299508100
Ybs67-8 washer, spring
Loading…
↗
19
6G545114A0
Gasket, upper casing
Loading…
↗
20
9709508030
Bolt, hexagon (fj1)
Loading…
↗
21
9299008600
Washer, plain (663)
Loading…
↗
23
6E541134A0
Gasket, exhaust manifold
Loading…
↗
27
6E51473700
Damper, muffler
Loading…
↗
28
9018305M02
Nut, spring (6e5)
Loading…
↗
29
6E54512300
Gasket, muffler
Loading…
↗
30
6E541135A0
Gasket, exhaust manifold
Loading…
↗
