115CETO (2003)
UPPER CASING

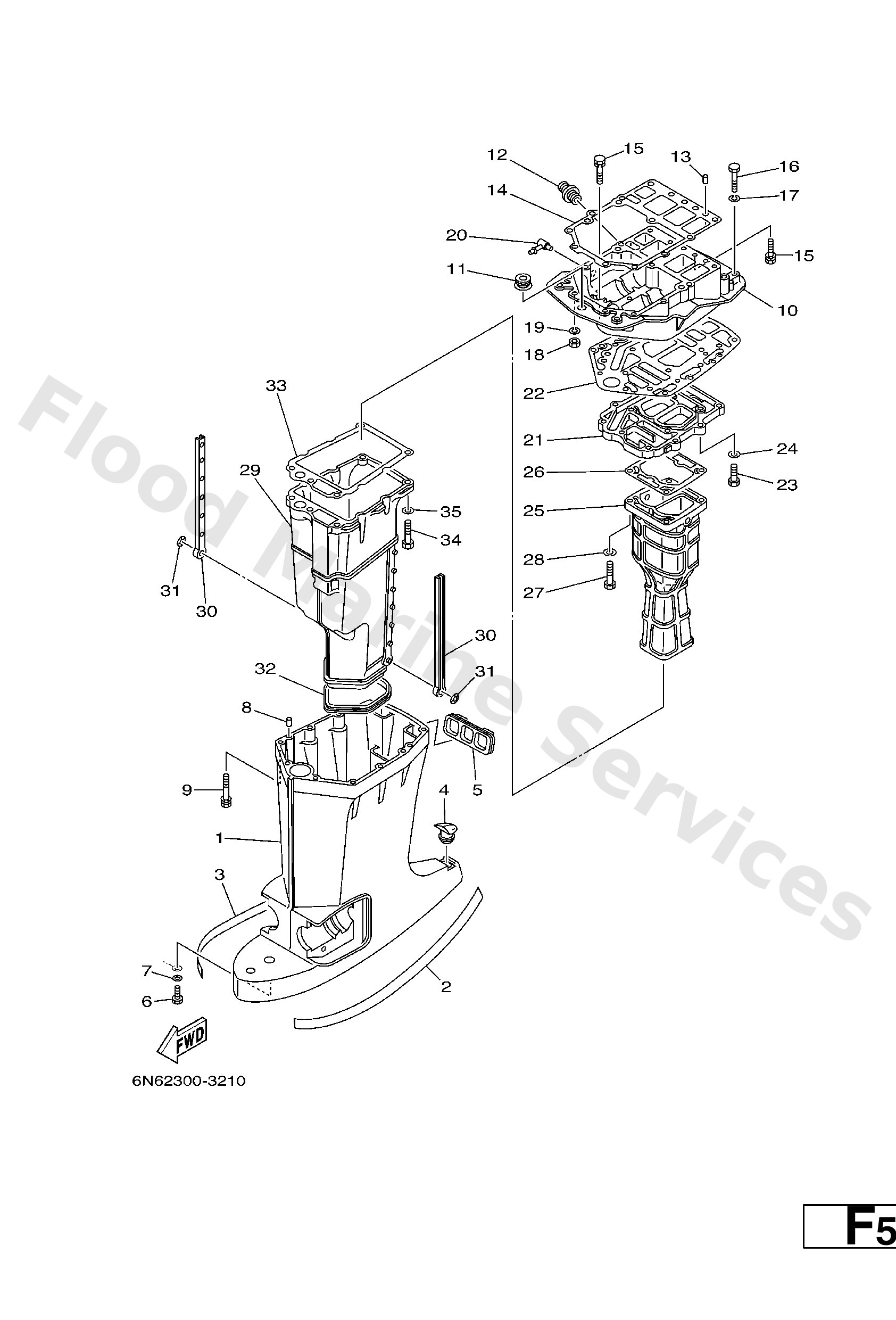

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6E5−45111−02−8D
L
Casing, upper
Loading…
↗
2
6R3−42791−41
Mark 1
Loading…
↗
3
6R3−42792−41
Mark
Loading…
↗
4
6E5−45155−00
Cap
Loading…
↗
5
6E5−42769−00
Seal, rubber
Loading…
↗
6
97095−06010
Bolt
Loading…
↗
7
92995−06600
Washer, plain (646)
Loading…
↗
8
93608−12M05
Pin, dowel b (6e5)
Loading…
↗
9
90119−08027
Bolt, with washer
Loading…
↗
10
6G5−41137−11−94
FLUSHING KIT
Guide, exhaust
Loading…
↗
11
6E5−42724−00
Grommet
Loading…
↗
12
6G5−12581−00
Joint, hose
Loading…
↗
14
6G5−45113−A1
Gasket, upper casing
Loading…
↗
15
90119−08M79
Bolt, hexagon (fj1)
Loading…
↗
16
97095−08045
Bolt, hexagon
Loading…
↗
17
92995−08100
Ybs67-8 washer, spring
Loading…
↗
18
95380−08700
Nut(661)
Loading…
↗
20
6H1−11372−00
FLUSHING KIT
Nipple, hose
Loading…
↗
21
6G5−41131−01−5B
Manifold, ext. 1
Loading…
↗
22
6G5−45114−A1
Gasket, upper casing
Loading…
↗
23
97095−08030
Bolt, hexagon (fj1)
Loading…
↗
24
92995−08600
Washer, plain (663)
Loading…
↗
25
6E5−41132−10−5B
Manifold, exhaust
Loading…
↗
25
6L1−41132−00−5B
Manifold, exhaust
Loading…
↗
26
6E5−41134−A0
Gasket, exhaust manifold
Loading…
↗
26
6G5−41134−A1
Gasket, exhaust manifold
Loading…
↗
29
6E5−14711−01−5B
Muffler 1
Loading…
↗
30
6E5−14737−00
Damper, muffler
Loading…
↗
31
90183−05M02
Nut, spring (6e5)
Loading…
↗
32
6E5−45123−00
Gasket, muffler
Loading…
↗
33
6E5−41135−A0
Gasket, exhaust manifold
Loading…
↗
