115CETO (2006)
UPPER CASING

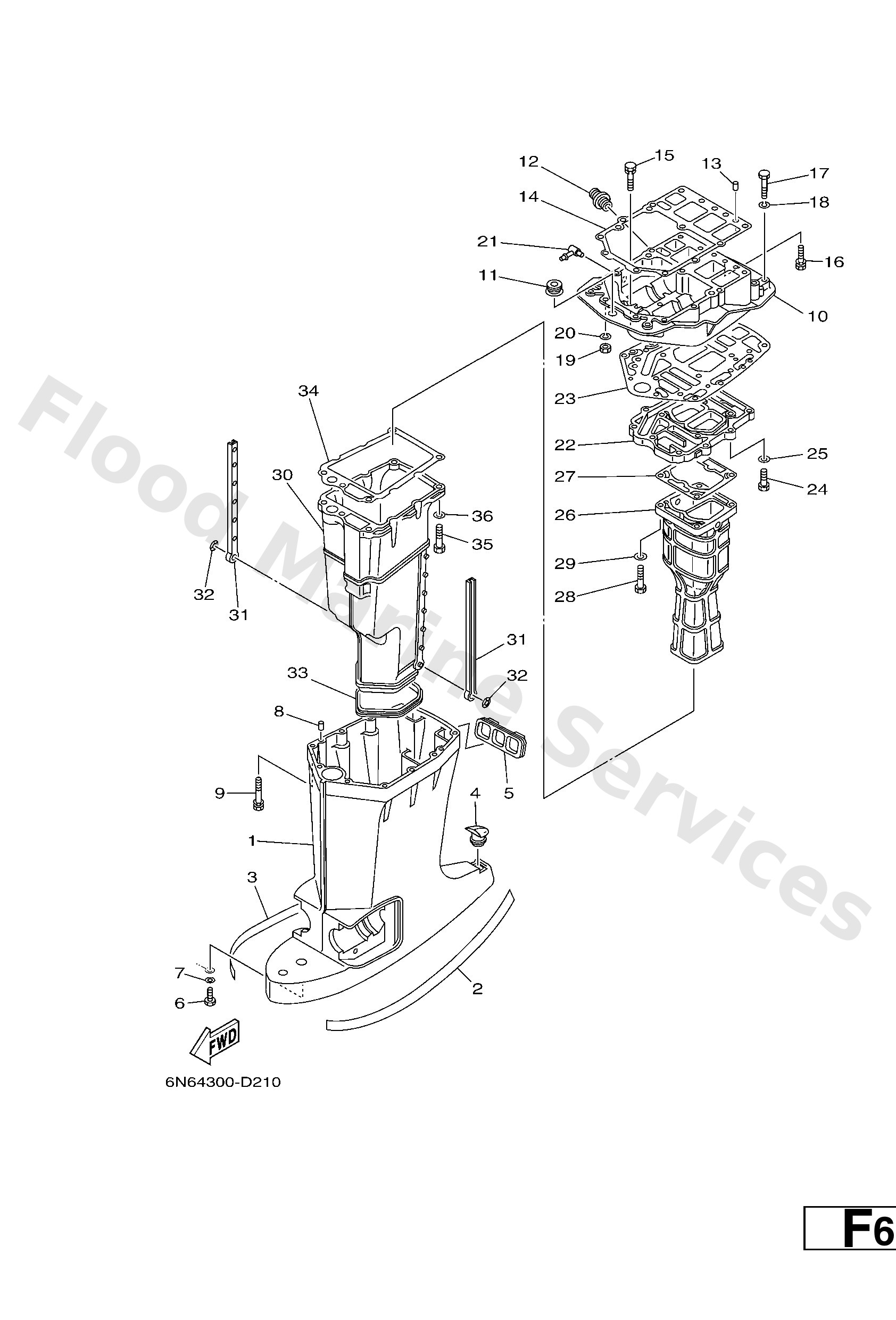

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6E545111028D
L (20.3")
Casing, upper
Loading…
↗
2
6R34279141
Mark 1
Loading…
↗
3
6R34279241
Mark
Loading…
↗
4
6E54515500
Cap
Loading…
↗
5
6E54276900
Seal, rubber
Loading…
↗
6
9709506010
Bolt
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
9360812M05
Pin, dowel b (6e5)
Loading…
↗
9
9011908078
Bolt, with washer
Loading…
↗
10
6G5411371194
FLUSHING KIT
Guide, exhaust
Loading…
↗
11
6E54272400
Grommet
Loading…
↗
12
6G51258100
Joint, hose
Loading…
↗
14
6G545113A1
Gasket, upper casing
Loading…
↗
15
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
16
9011908077
Bolt, with washer
Loading…
↗
17
9709508045
Bolt, hexagon
Loading…
↗
18
9299508100
Ybs67-8 washer, spring
Loading…
↗
19
9538008700
Nut(661)
Loading…
↗
21
6H11137200
FLUSHING KIT
Nipple, hose
Loading…
↗
22
6G541131015B
Manifold, ext. 1
Loading…
↗
23
6G545114A1
Gasket, upper casing
Loading…
↗
24
9709508030
Bolt, hexagon (fj1)
Loading…
↗
25
9299508600
Washer, plain (663)
Loading…
↗
26
6E541132105B
Manifold, exhaust
Loading…
↗
26
6L141132005B
Manifold, exhaust
Loading…
↗
27
6E541134A0
Gasket, exhaust manifold
Loading…
↗
27
6G541134A1
Gasket, exhaust manifold
Loading…
↗
30
6E514711015B
Muffler 1
Loading…
↗
31
6E51473700
Damper, muffler
Loading…
↗
32
9018305M02
Nut, spring (6e5)
Loading…
↗
33
6E54512300
Gasket, muffler
Loading…
↗
34
6E541135A0
Gasket, exhaust manifold
Loading…
↗
