115CETO (2012)
UPPER CASING

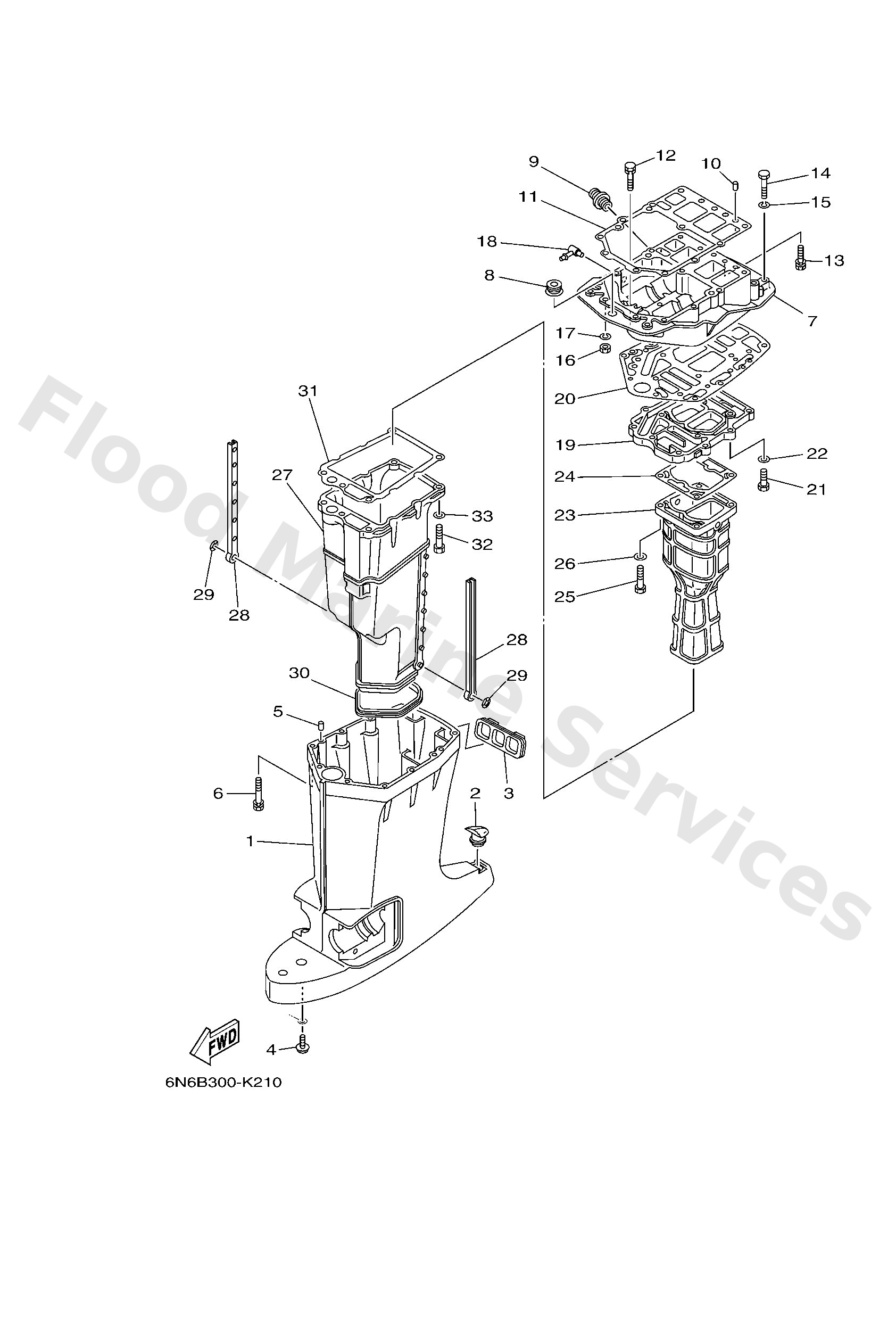

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6E545111028D
L(20.3")
Casing, upper
Loading…
↗
2
6E54515500
Cap
Loading…
↗
3
6E54276900
Seal, rubber
Loading…
↗
4
9589506010
Bolt, flange(7ht)
Loading…
↗
5
9360812M05
Pin, dowel b (6e5)
Loading…
↗
6
9011908078
Bolt, with washer
Loading…
↗
7
6G54113711CA
FLUSHING KIT
Guide, exhaust
Loading…
↗
8
6E54272400
Grommet
Loading…
↗
9
6G51258100
Joint, hose
Loading…
↗
11
6G545113A2
Gasket, upper casing
Loading…
↗
12
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
13
9011908077
Bolt, with washer
Loading…
↗
14
9709508045
Bolt, hexagon
Loading…
↗
15
9299508100
Ybs67-8 washer, spring
Loading…
↗
16
9538008700
Nut(661)
Loading…
↗
18
6H11137200
FLUSHING KIT
Nipple, hose
Loading…
↗
19
6G54113101CA
Manifold, ext. 1
Loading…
↗
20
6G545114A1
Gasket, upper casing
Loading…
↗
21
9709508030
Bolt, hexagon (fj1)
Loading…
↗
22
9299508600
Washer, plain (663)
Loading…
↗
23
6E54113210CA
Manifold, exhaust
Loading…
↗
24
6E541134A0
Gasket, exhaust manifold
Loading…
↗
27
6E51471101CA
Muffler 1
Loading…
↗
28
6E51473700
Damper, muffler
Loading…
↗
29
9018305M02
Nut, spring (6e5)
Loading…
↗
30
6E54512300
Gasket, muffler
Loading…
↗
31
6E541135A0
Gasket, exhaust manifold
Loading…
↗
