20DMHO (2006)
UPPER CASING

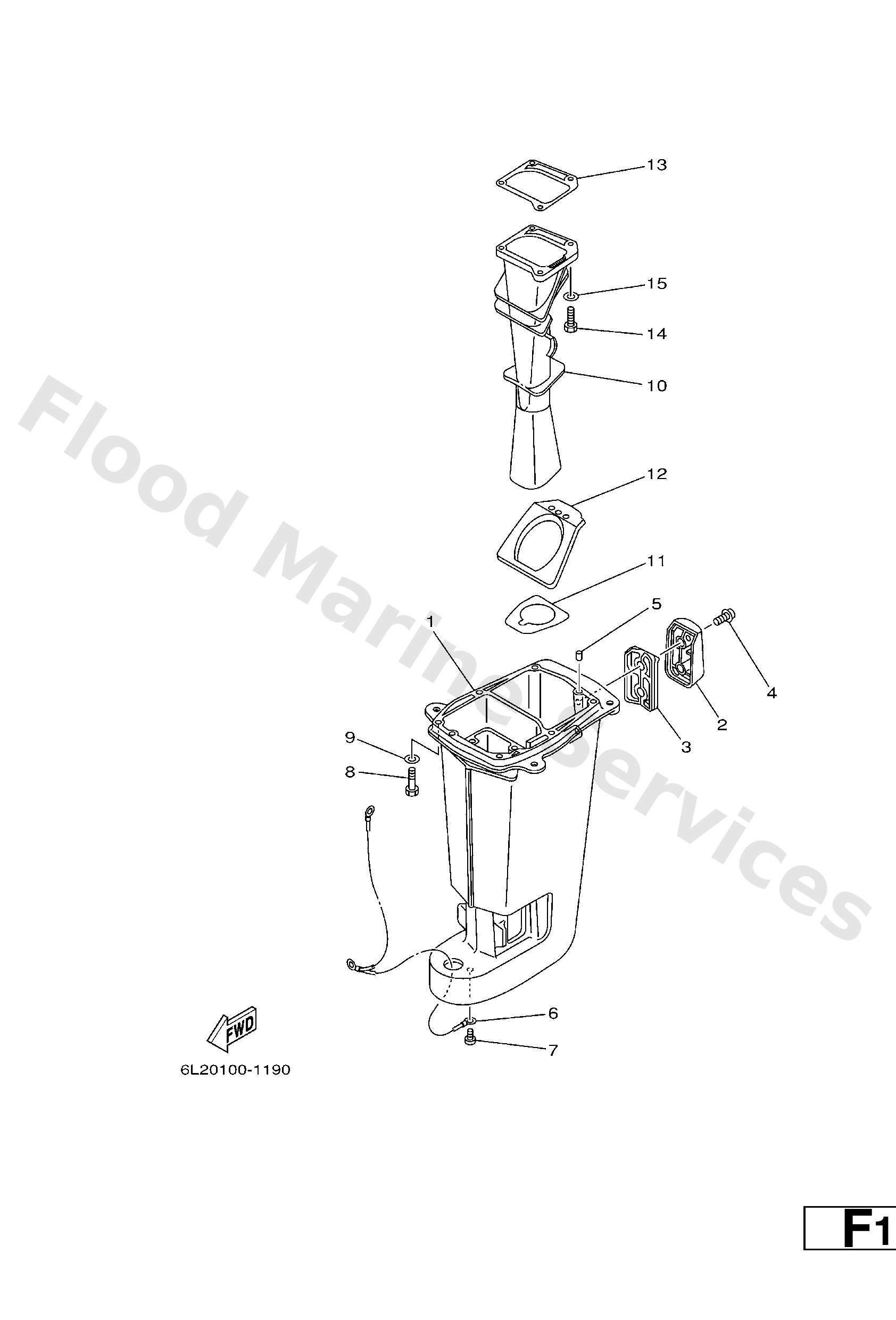

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6L245111124D
L (21.5")
Casing, upper
Loading…
↗
1
6L245111024D
S (16.5")
Casing, upper
Loading…
↗
2
6L245151014D
Cover, upper casing
Loading…
↗
3
6L24511500
Gasket, upper casing
Loading…
↗
4
9015906M11
Screw, with washer(6l2)
Loading…
↗
5
9360412M07
Pin, dowel (688)
Loading…
↗
6
6L28212700
Wire, lead 2
Loading…
↗
7
9015706M06
Screw, pan head(6m7)
Loading…
↗
8
9707508030
Bolt, hexagon (fj1)
Loading…
↗
9
9299508600
Washer, plain (663)
Loading…
↗
10
6L241131005B
Manifold, ext. 1
Loading…
↗
10
6L341131005B
Manifold, ext. 1
Loading…
↗
11
6L24113400
Gasket, exhaust manifold
Loading…
↗
12
6L24512301
Gasket, muffler
Loading…
↗
13
6L241133A2
Gasket, exhaust manifold 1
Loading…
↗
14
9709506020
Bolt(7u8)
Loading…
↗
15
9299506600
Washer, plain (646)
Loading…
↗
