225GETO (2003)
UPPER CASING

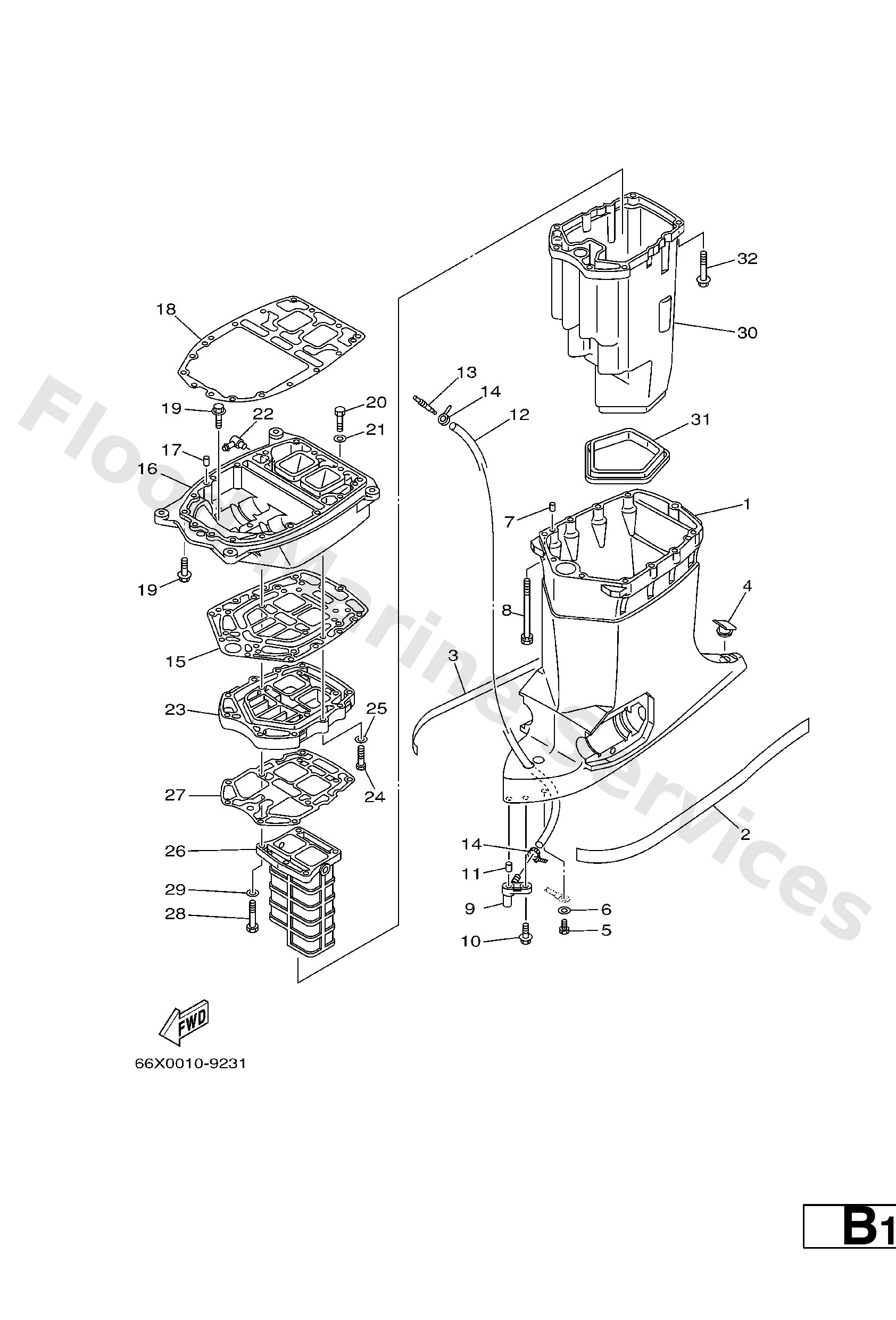

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
66K−45111−00−8D
Casing, Upper
Loading…
↗
2
6N9−42791−40
Mark 1
Loading…
↗
3
6N9−42792−40
Mark 2
Loading…
↗
4
61A−45155−00
Cap
Loading…
↗
5
97095−06010
Bolt
Loading…
↗
6
92995−06600
Washer, plain (646)
Loading…
↗
7
93608−12M05
Pin, dowel b (6e5)
Loading…
↗
8
90119−08M78
Bolt, with washer
Loading…
↗
9
66K−45378−00
Nipple, hose
Loading…
↗
10
90119−06M17
Bolt, with washer
Loading…
↗
11
93606−12019
Pin, dowel (614)
Loading…
↗
12
90445−07MF0
Hose (l1160)
Loading…
↗
13
6E5−83558−00
End, nipple
Loading…
↗
14
90465−11M10
Clamp
Loading…
↗
15
61A−45114−A0
Gasket, upper casing
Loading…
↗
16
61A−41137−13−94
FLUSHING KIT
Guide, exhaust
Loading…
↗
18
61A−45113−A0
Gasket, upper casing
Loading…
↗
19
90119−08M79
Bolt, hexagon (fj1)
Loading…
↗
20
97095−08035
Bolt(70w)
Loading…
↗
21
92995−08600
Washer, plain (663)
Loading…
↗
22
6H1−11372−00
FLUSHING KIT
Nipple, hose
Loading…
↗
23
61A−41131−00−5B
Manifold, ext. 1
Loading…
↗
26
61A−41132−01−5B
Manifold, exhaust
Loading…
↗
27
61A−41134−A0
Gasket, exhaust manifold
Loading…
↗
28
97095−08050
Bolt (62k)
Loading…
↗
30
66K−14711−00−5B
Muffler 1
Loading…
↗
31
66K−45123−00
Gasket, muffler
Loading…
↗
32
90119−08M74
Bolt, with washer(61a)
