250GETO (2007)
UPPER CASING

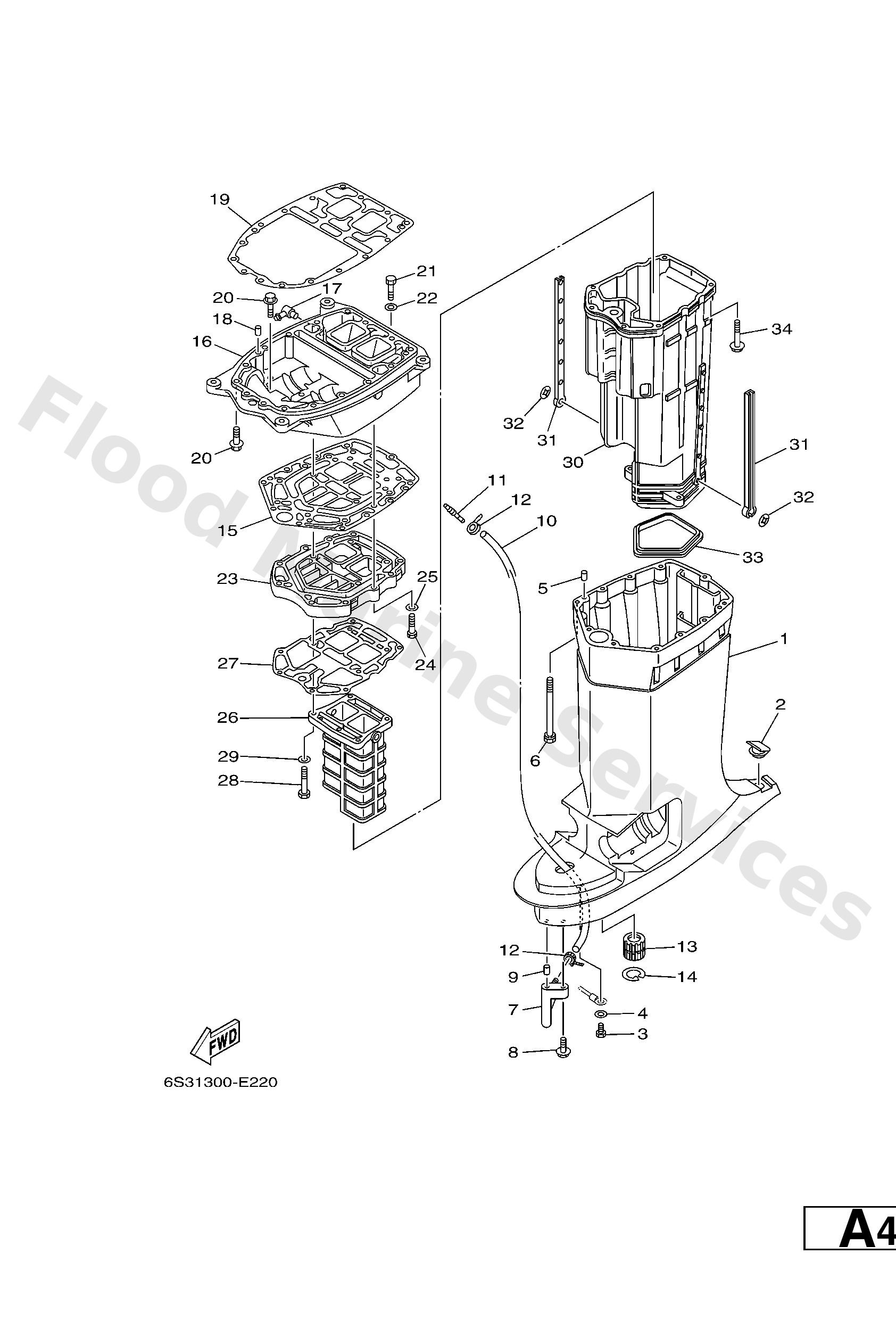

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
61A45111228D
X(25.3")
Casing, upper
Loading…
↗
2
61A4515500
Cap
Loading…
↗
3
9709506010
Bolt
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9360812M05
Pin, dowel b (6e5)
Loading…
↗
6
9011908078
Bolt, with washer
Loading…
↗
7
61A4537800
Nipple, hose
Loading…
↗
8
9011906M17
Bolt, with washer
Loading…
↗
9
9360612019
Pin, dowel (614)
Loading…
↗
10
9044507MF0
X(25.3")
Hose (l1160)
Loading…
↗
11
6E58355800
End, nipple
Loading…
↗
12
9046511M10
Clamp
Loading…
↗
13
6E54531800
Bushing, drive shaft 3
Loading…
↗
14
9342036M01
Circlip (6a0)
Loading…
↗
15
61A45114A0
Gasket, upper casing
Loading…
↗
16
61A411371494
FLUSHING KIT
Guide, Exhaust
Loading…
↗
17
6H11137200
FLUSHING KIT
Nipple, hose
Loading…
↗
19
61A45113A0
Gasket, upper casing
Loading…
↗
20
9011908077
Bolt, with washer
Loading…
↗
21
9709508035
Bolt(70w)
Loading…
↗
22
9299508600
Washer, plain (663)
Loading…
↗
23
61A41131035B
Manifold, ext. 1
Loading…
↗
26
61A41132205B
Manifold, exhaust
Loading…
↗
27
6D04113400
Gasket, exhaust manifold
Loading…
↗
28
9709508050
Bolt (62k)
Loading…
↗
30
61A14711305B
Muffler 1
Loading…
↗
31
6E51473700
Damper, muffler
Loading…
↗
32
9018305M02
Nut, spring (6e5)
Loading…
↗
33
61A4512301
Gasket, muffler
Loading…
↗
34
9011908M74
Bolt, with washer(61a)
Loading…
↗
