25BMH (2007)
UPPER CASING

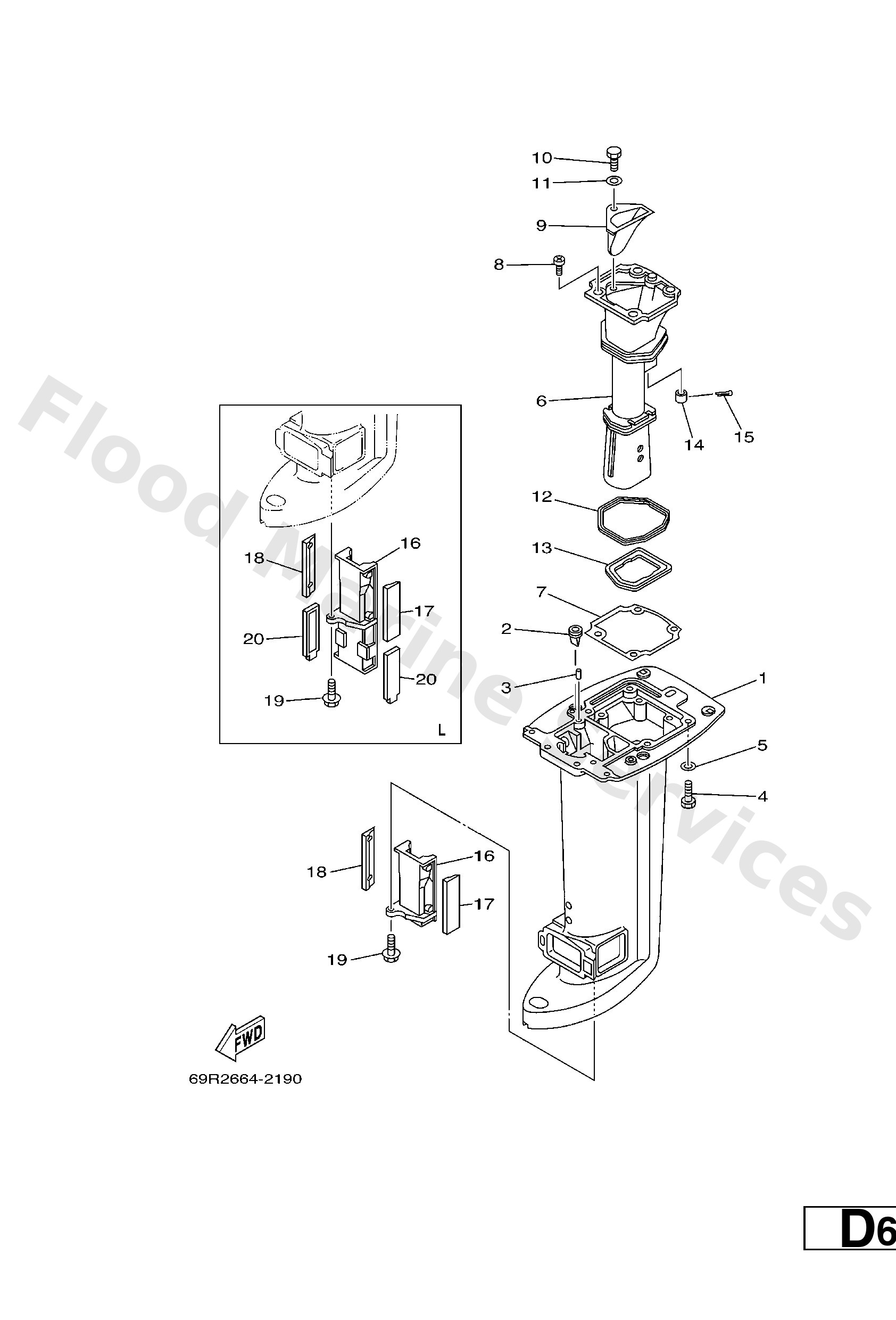

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
69P45111104D
L(21.6")
Casing, upper
Loading…
↗
1
69P45111004D
S(16.7")
Casing, upper
Loading…
↗
2
65W4271700
Rubber, seal 2
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9707508030
Bolt, hexagon (fj1)
Loading…
↗
5
9299508600
Washer, plain (663)
Loading…
↗
6
69P41131015B
Manifold, ext. 1
Loading…
↗
7
69P41134A0
Gasket, exhaust manifold
Loading…
↗
8
9788006016
Screw pan head
Loading…
↗
9
69P41137005B
Guide, exhaust
Loading…
↗
10
9709508020
Bolt, hexagon
Loading…
↗
12
69P4113800
Seal, ext. 1
Loading…
↗
13
69P4113900
Seal, ext. 2
Loading…
↗
14
6A84113500
Gasket, exhaust manifold 3
Loading…
↗
15
9149030025
Pin cotter
Loading…
↗
16
69P47467005B
S(16.7")
Plate, guide
Loading…
↗
16
69P47467105B
L(21.6")
Plate, guide
Loading…
↗
17
69P4512700
Seal
Loading…
↗
18
69P4512800
Seal 2
Loading…
↗
19
9011906024
Bolt(7u8)
Loading…
↗
20
69P4515900
L(21.6")
Damper
Loading…
↗
