Yamaha Outboard Parts - UPPER CASING - 25MHB3 (2003) | Flood Marine
New Search
Parts
New Outboards
Home
25MHB3 (2003)
UPPER CASING

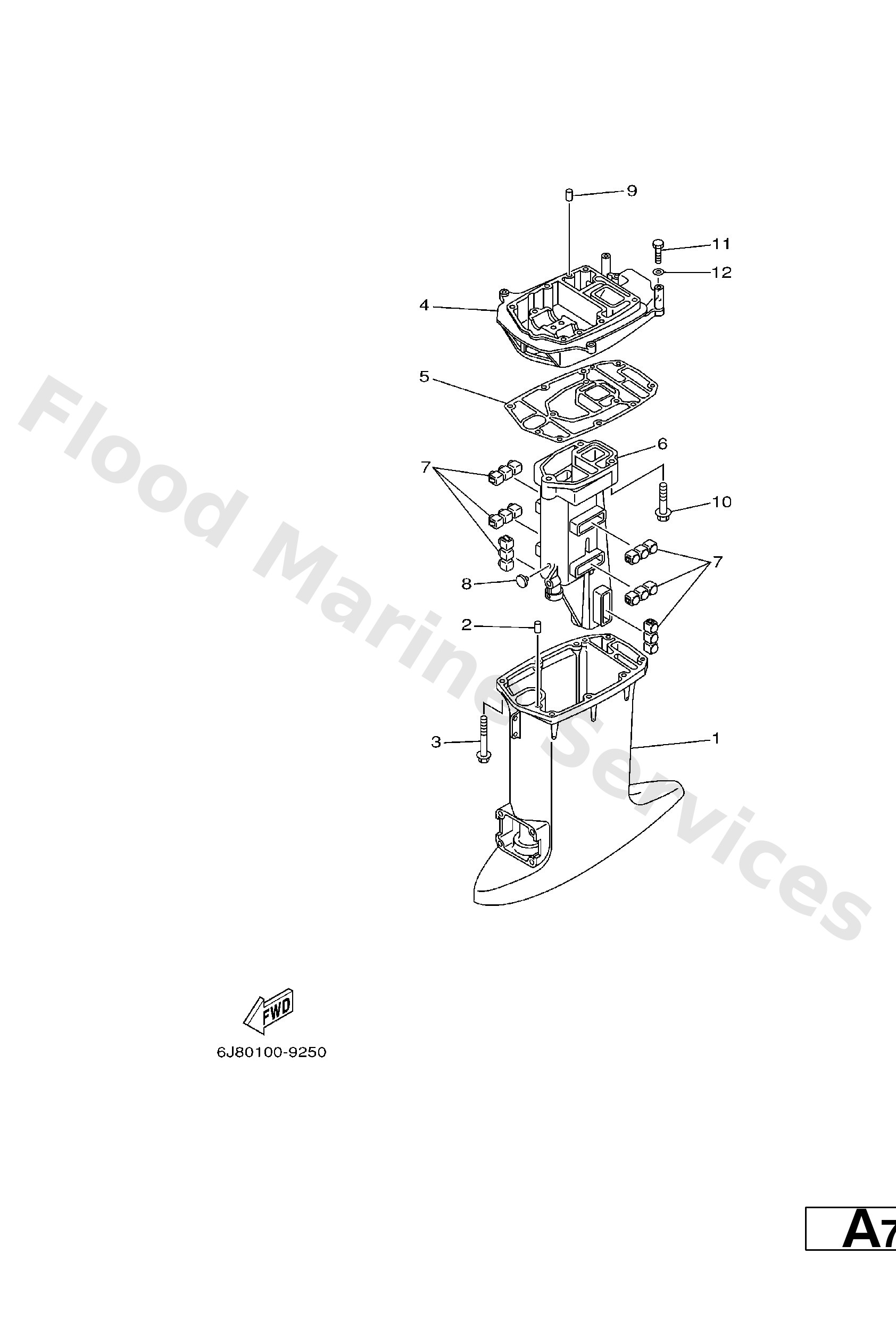

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6J8−45111−01−4D
S
Casing, upper
Loading…
↗
1
6J8−45111−11−4D
L
Casing, upper
Loading…
↗
2
93606−12019
Pin, dowel (614)
Loading…
↗
3
90119−08M31
Bolt, with washer(6j8)
Loading…
↗
4
6J8−41137−01−94
Guide, exhaust
Loading…
↗
5
6J8−45114−A1
Gasket, upper casing
Loading…
↗
6
6J8−41131−00−5B
Manifold, ext. 1
Loading…
↗
6
6K9−41131−00−5B
Manifold, Ext. 1
Loading…
↗
7
6J8−14737−00
Damper, muffler
Loading…
↗
8
90338−07M00
Plug(6j8)
Loading…
↗
10
97575−08550
Bolt, with washer
Loading…
↗
11
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
12
92995−08600
Washer, plain (663)
Loading…
↗
