2BMH (2003)
UPPER CASING

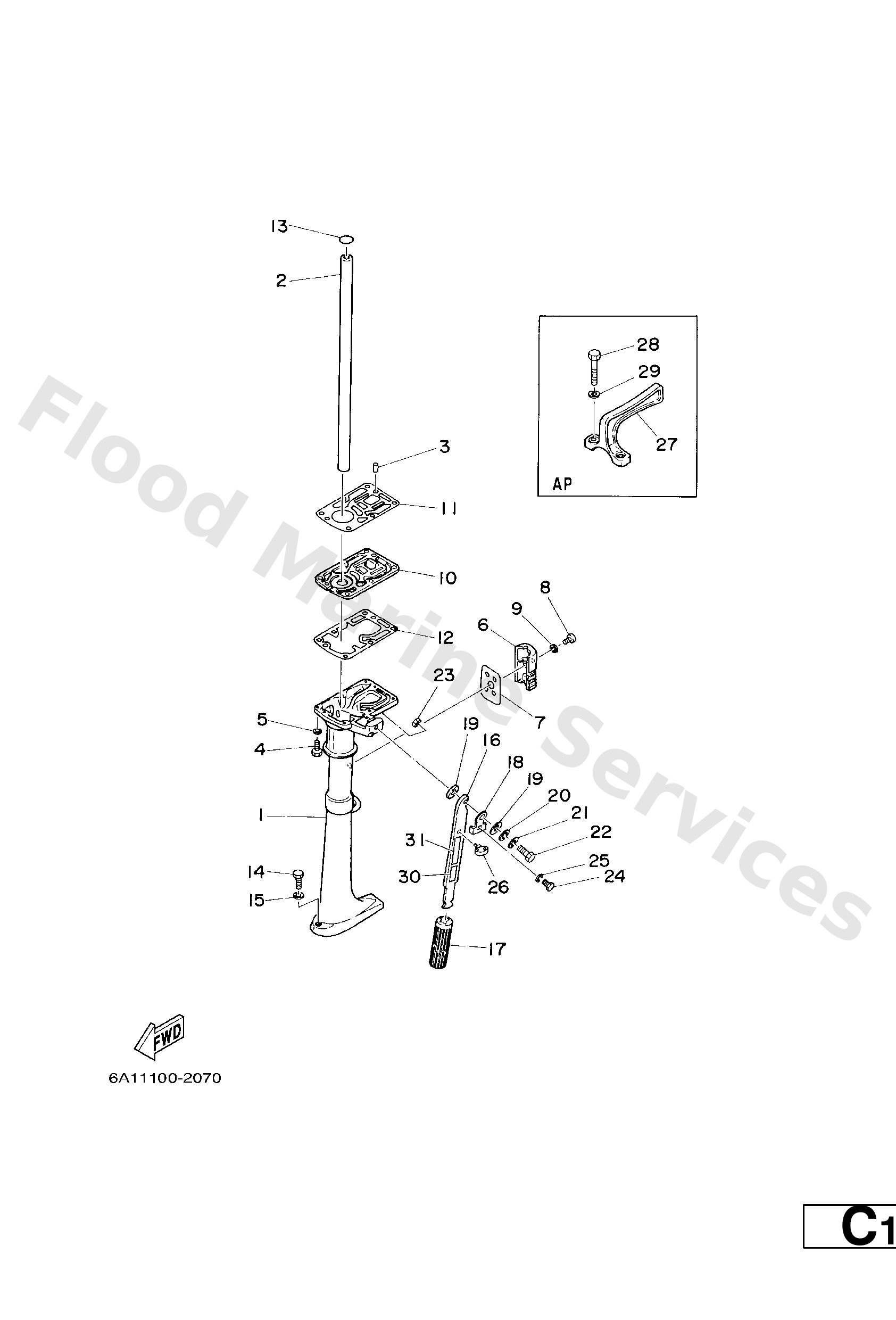

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6A1−45111−02−4D
Casing, upper
Loading…
↗
2
6A1−45113−00
Pipe
Loading…
↗
3
93605−15065
Pin, dowel
Loading…
↗
4
97095−06025
Bolt
Loading…
↗
5
92995−06600
Washer, plain (646)
Loading…
↗
6
6A1−45151−00
Cover, upper casing
Loading…
↗
7
6A1−45115−00
Gasket, upper casing
Loading…
↗
8
97880−06016
Screw pan head
Loading…
↗
9
92990−06600
Washer, plain (646)
Loading…
↗
10
6A1−41137−00−5B
Guide,exhaust
Loading…
↗
11
6A1−14613−A0
Gasket,exhaust 1
Loading…
↗
12
646−14623−A1
Gasket, exhaust
Loading…
↗
13
93210−19123
O-ring (646)
Loading…
↗
14
97095−06030
Bolt(jf7)
Loading…
↗
16
6A1−42111−00−4D
Handle, steering
Loading…
↗
17
646−42119−02
Grip, steering handle
Loading…
↗
18
6A1−42181−00
Washer
Loading…
↗
19
90201−09117
Washer 1 6154367300
Loading…
↗
20
92990−08200
Ybs66-8 washer, plain
Loading…
↗
21
92990−08100
Ybs67-8 washer, spring
Loading…
↗
22
90101−08M11
Bolt(6a1)
Loading…
↗
23
95380−08600
Nut (661)
Loading…
↗
24
97095−06010
Bolt
Loading…
↗
25
92995−06100
Washer(6a1)
Loading…
↗
26
646−42591−00
Holder, shear pin
Loading…
↗
27
646−42121−00−94
AP
Bracket
Loading…
↗
28
97095−06055
AP
Bolt, hexagon w/w deep recess
Loading…
↗
29
92990−06100
AP
Washer(6a1)
Loading…
↗
30
6A1−2415A−41
Label, caution
Loading…
↗
31
6A1−2415A−51
Label, Caution
Loading…
↗
