30DMHO (2014)
UPPER CASING

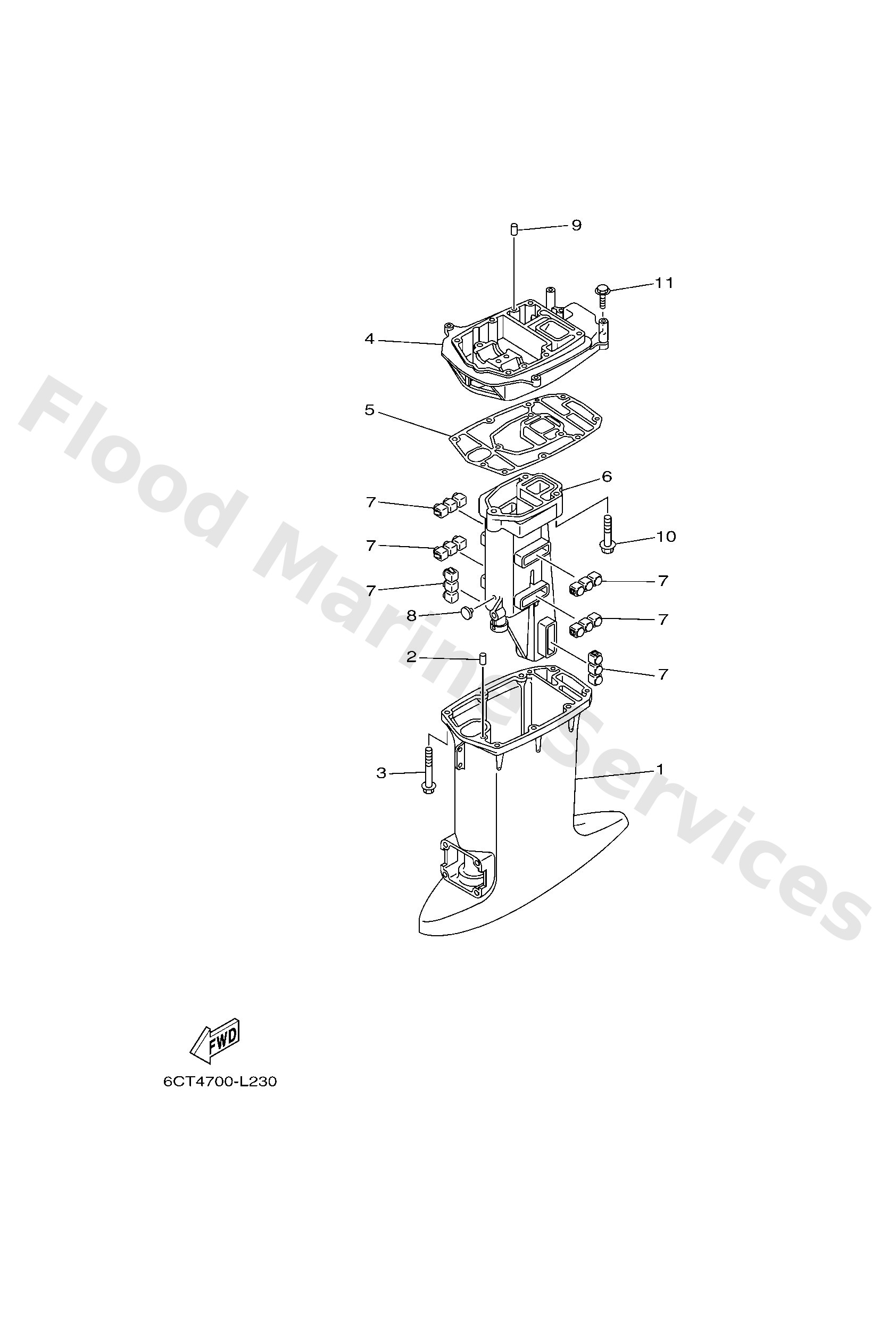

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6J845111114D
L(21.5")
Casing, upper
Loading…
↗
1
6J845111014D
S(16.7")
Casing, upper
Loading…
↗
2
9360612019
Pin, dowel (614)
Loading…
↗
3
9011908M31
Bolt, with washer(6j8)
Loading…
↗
4
6J84113701CA
Guide, exhaust
Loading…
↗
5
6J845114A1
Gasket, upper casing
Loading…
↗
6
6J84113100CA
Manifold, ext. 1
Loading…
↗
7
6J81473700
Damper, muffler
Loading…
↗
8
9033807M00
Plug(6j8)
Loading…
↗
10
9757508550
Bolt, with washer
Loading…
↗
11
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
