40VMHO (2007)
UPPER CASING

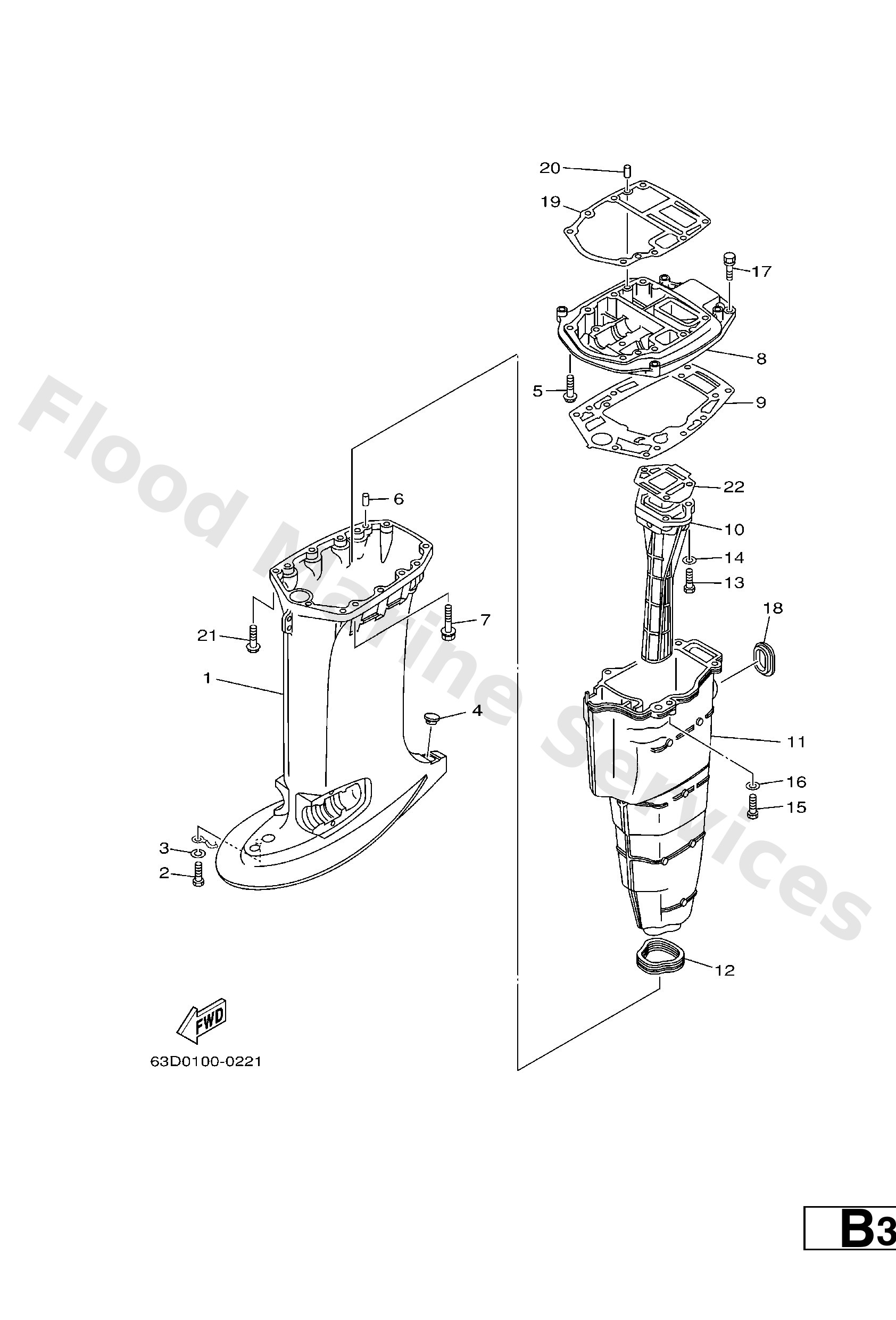

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
63D45111114D
L(21.0")
Casing, upper
Loading…
↗
1
63D45111014D
S(16.0")
Casing, upper
Loading…
↗
2
9709506012
Bolt(gh1)
Loading…
↗
3
9299506100
Washer(6a1)
Loading…
↗
4
63D4515500
Cap
Loading…
↗
5
9757508445
Bolt, hexagon w/w deep recess
Loading…
↗
6
9360612019
Pin, dowel (614)
Loading…
↗
7
9011908M83
Bolt, with washer(697)
Loading…
↗
8
63D41137015B
Guide, exhaust
Loading…
↗
9
63D45114A0
Gasket, upper casing
Loading…
↗
10
6H441131015B
40V
Manifold, exhaust
Loading…
↗
10
6H541131005B
40Y
Manifold, ext
Loading…
↗
11
63D14711005B
S(16.0")
Muffler 1
Loading…
↗
11
63D14711115B
L(21.0")
Muffler
Loading…
↗
12
63D4512300
Gasket, muffler
Loading…
↗
13
9707508030
Bolt, hexagon (fj1)
Loading…
↗
14
9299508600
Washer, plain (663)
Loading…
↗
17
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
18
6H34512700
Seal 1
Loading…
↗
19
6H445113A0
Gasket, upper casing
Loading…
↗
22
6H441134A0
Gasket, exhaust manifold
Loading…
↗
