40VMHO (2017)
UPPER CASING

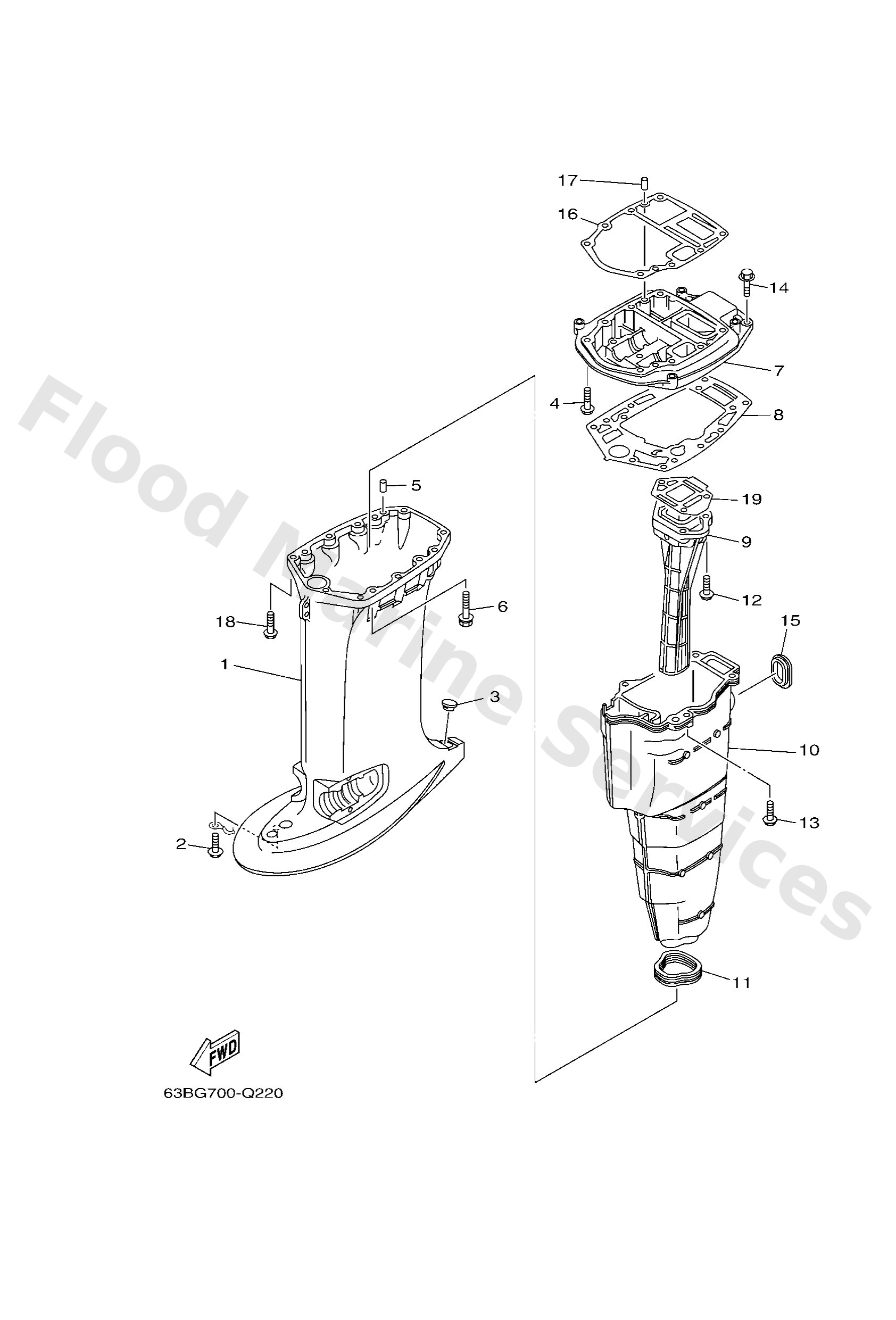

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
63D45111118D
L(21.0")
Casing, upper
Loading…
↗
1
63D45111018D
S(16.0")
Casing, upper
Loading…
↗
2
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
3
63D4515500
Cap
Loading…
↗
4
9757508545
Bolt, hexagon w/w deep recess
Loading…
↗
5
9360612019
Pin, dowel (614)
Loading…
↗
6
9011908M83
Bolt, with washer(697)
Loading…
↗
7
63D4113701CA
Guide, exhaust
Loading…
↗
8
63D45114A0
Gasket, upper casing
Loading…
↗
9
6H44113101CA
40V
Manifold, ext. 1
Loading…
↗
9
6H54113100CA
50H
Manifold, ext
Loading…
↗
10
63D1471100CA
S(16.0")
Muffler 1
Loading…
↗
10
63D1471111CA
L(21.0")
Muffler 1
Loading…
↗
11
63D4512300
Gasket, muffler
Loading…
↗
12
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
15
6H34512700
Seal 1
Loading…
↗
16
6H445113A0
Gasket, upper casing
Loading…
↗
19
6H441134A0
Gasket, exhaust manifold
Loading…
↗
