40XMH (2004)
UPPER CASING

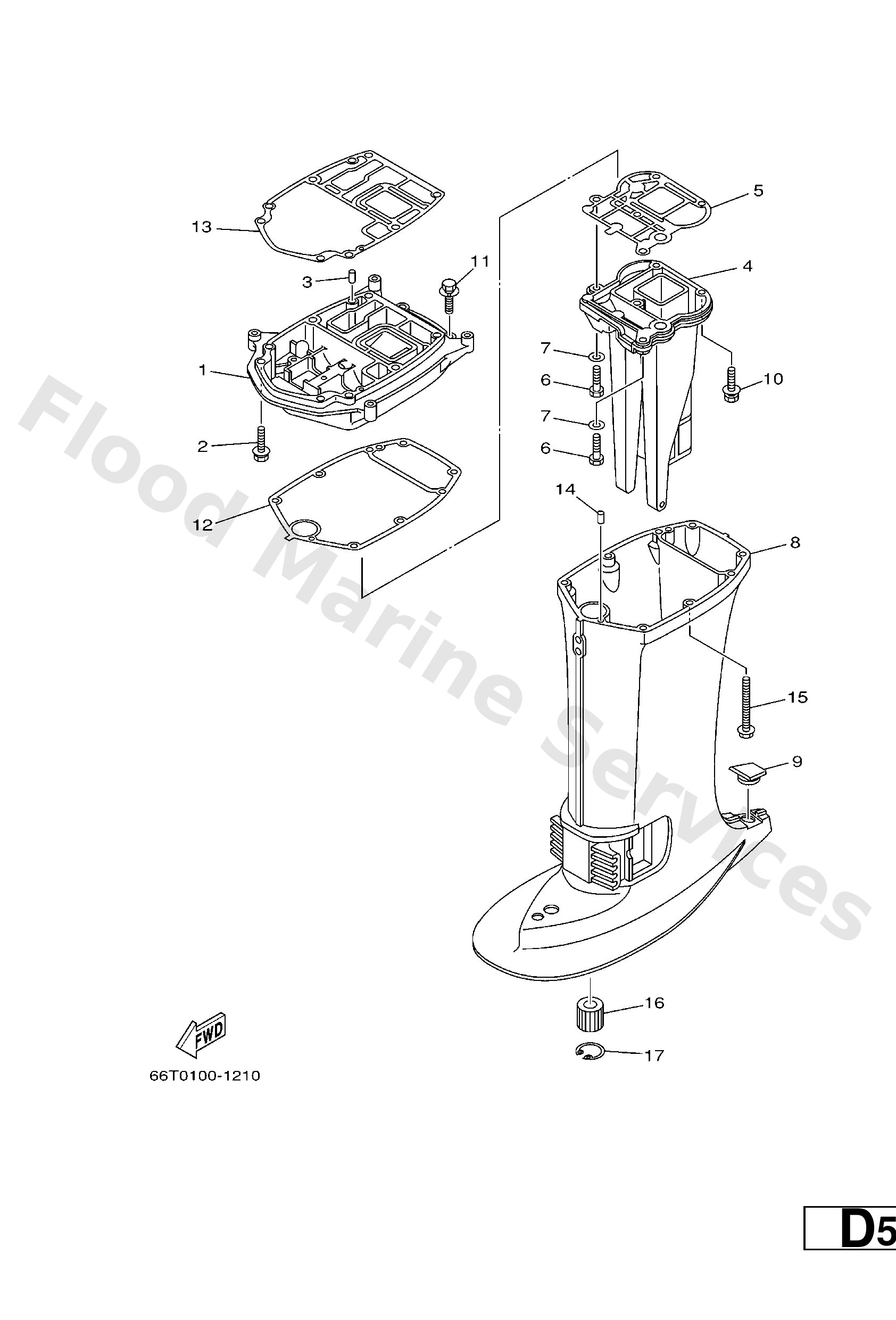

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
66T411370094
Guide, exhaust
Loading…
↗
2
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
66T41131105B
L
Manifold, ext. 1
Loading…
↗
5
66T41133A0
Gasket, exhaust manifold 1
Loading…
↗
6
9707508030
Bolt, hexagon (fj1)
Loading…
↗
7
9299508600
Washer, plain (663)
Loading…
↗
8
66T45111104D
L
Casing, upper
Loading…
↗
9
63D4515500
Cap
Loading…
↗
10
9757508545
Bolt, hexagon w/w deep recess
Loading…
↗
12
66T45114A0
Gasket, upper casing
Loading…
↗
13
66T45113A0
Gasket, upper casing
Loading…
↗
15
9011908M42
Bolt, with washer
Loading…
↗
16
6794531800
L
Bushing, drive shaft 3
Loading…
↗
17
9342030042
L
Circlip (650)
Loading…
↗
