Yamaha Outboard Parts - UPPER CASING - 40XMH (2014) | Flood Marine
New Search
Parts
New Outboards
Home
40XMH (2014)
UPPER CASING

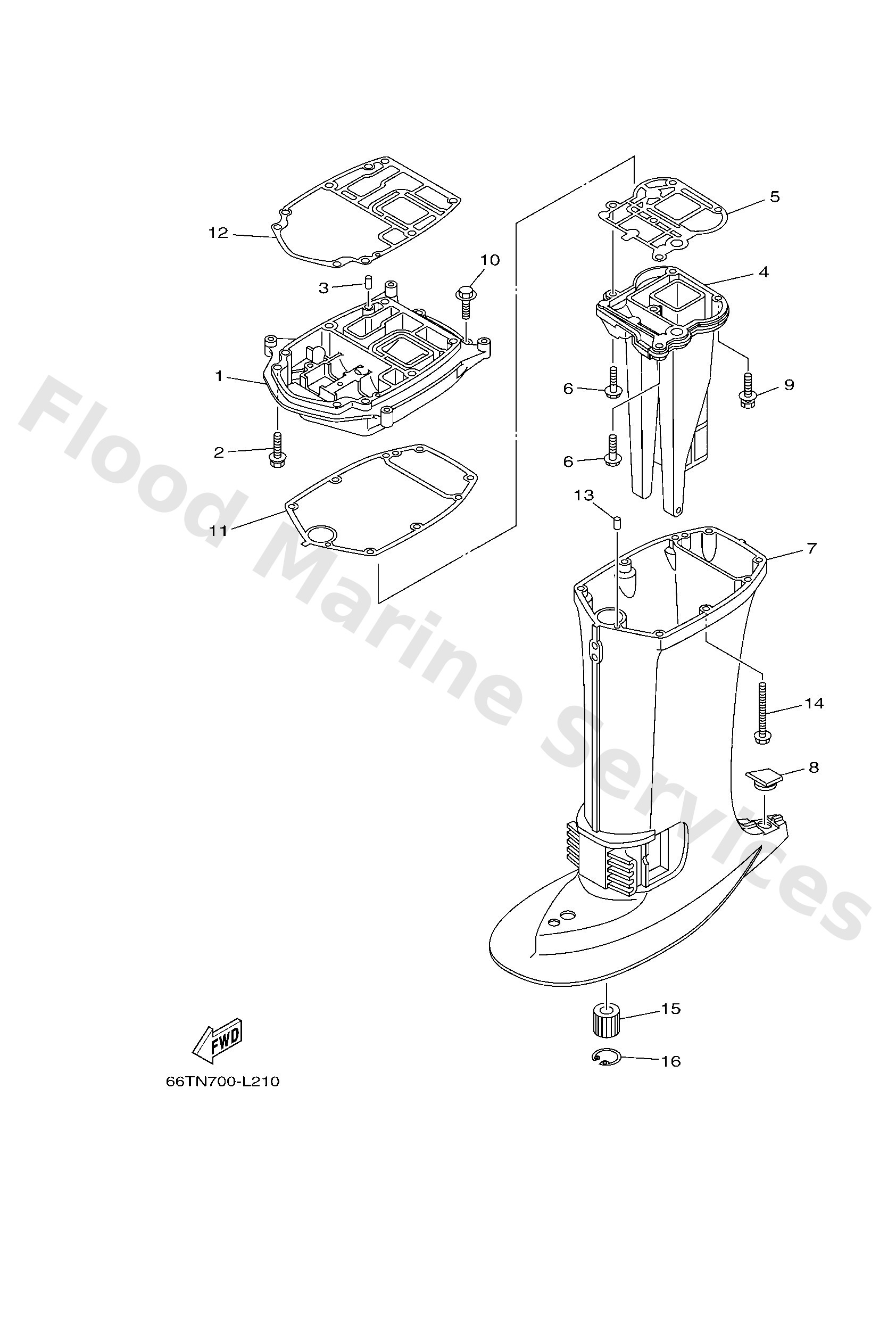

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
66T4113700CA
Guide, exhaust
Loading…
↗
2
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
66T4113110CA
L(21.7")
Manifold, ext. 1
Loading…
↗
5
66T41133A0
Gasket, exhaust manifold 1
Loading…
↗
6
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
7
66T45111104D
L(21.7")
Casing, upper
Loading…
↗
8
63D4515500
Cap
Loading…
↗
9
9757508545
Bolt, hexagon w/w deep recess
Loading…
↗
11
66T45114A0
Gasket, upper casing
Loading…
↗
12
66T45113A0
Gasket, upper casing
Loading…
↗
14
9011908M42
Bolt, with washer
Loading…
↗
15
6794531800
L(21.7")
Bushing, drive shaft 3
Loading…
↗
16
9342030042
L(21.7")
Circlip (650)
Loading…
↗
