50GETO (2002)
UPPER CASING

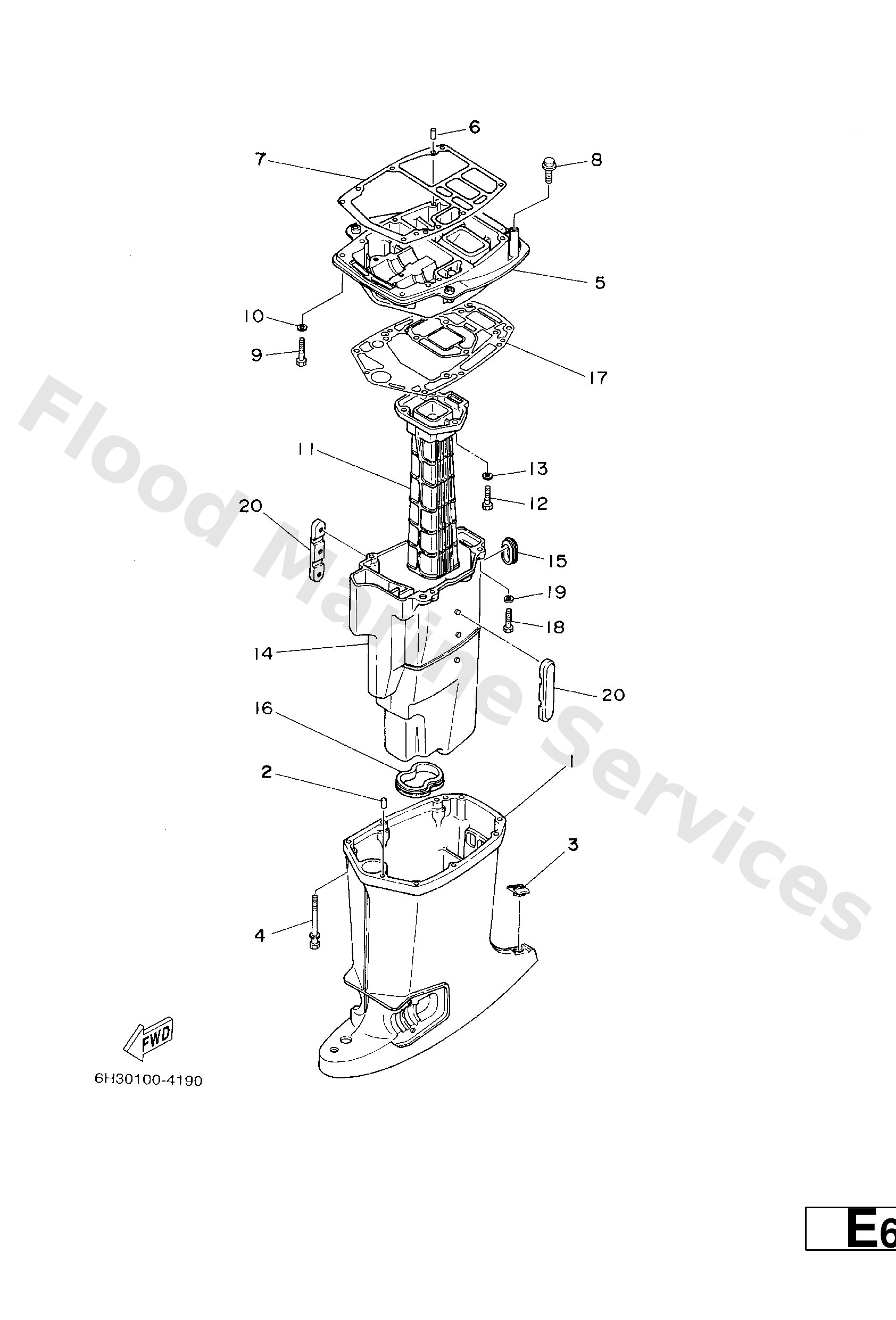

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6H345111114D
Casing, upper
Loading…
↗
2
93606--12019
Pin, dowel (614)
Loading…
↗
3
6H34515500
Cap
Loading…
↗
4
90119--08M81
Bolt, with washer
Loading…
↗
5
6H3411370194
Guide, exhaust
Loading…
↗
7
6H3--45113--A0
Gasket, upper casing
Loading…
↗
8
90119--08M79
Bolt, hexagon (fj1)
Loading…
↗
9
97075--08035
Bolt(70w)
Loading…
↗
10
92995--08100
Ybs67-8 washer, spring
Loading…
↗
11
6H341131005B
Manifold, ext
Loading…
↗
11
6H241131005B
Manifold, ext. 1
Loading…
↗
12
97075--08030
Bolt, hexagon (fj1)
Loading…
↗
14
6H314711105B
Muffler 1
Loading…
↗
15
6H3--45127--00
Seal 1
Loading…
↗
16
6H3--45123--00
Gasket, muffler
Loading…
↗
17
6H3--45114--A1
Gasket, upper casing
Loading…
↗
20
6H3--14737--10
Damper, muffler
Loading…
↗
