50GETO (2003)
UPPER CASING

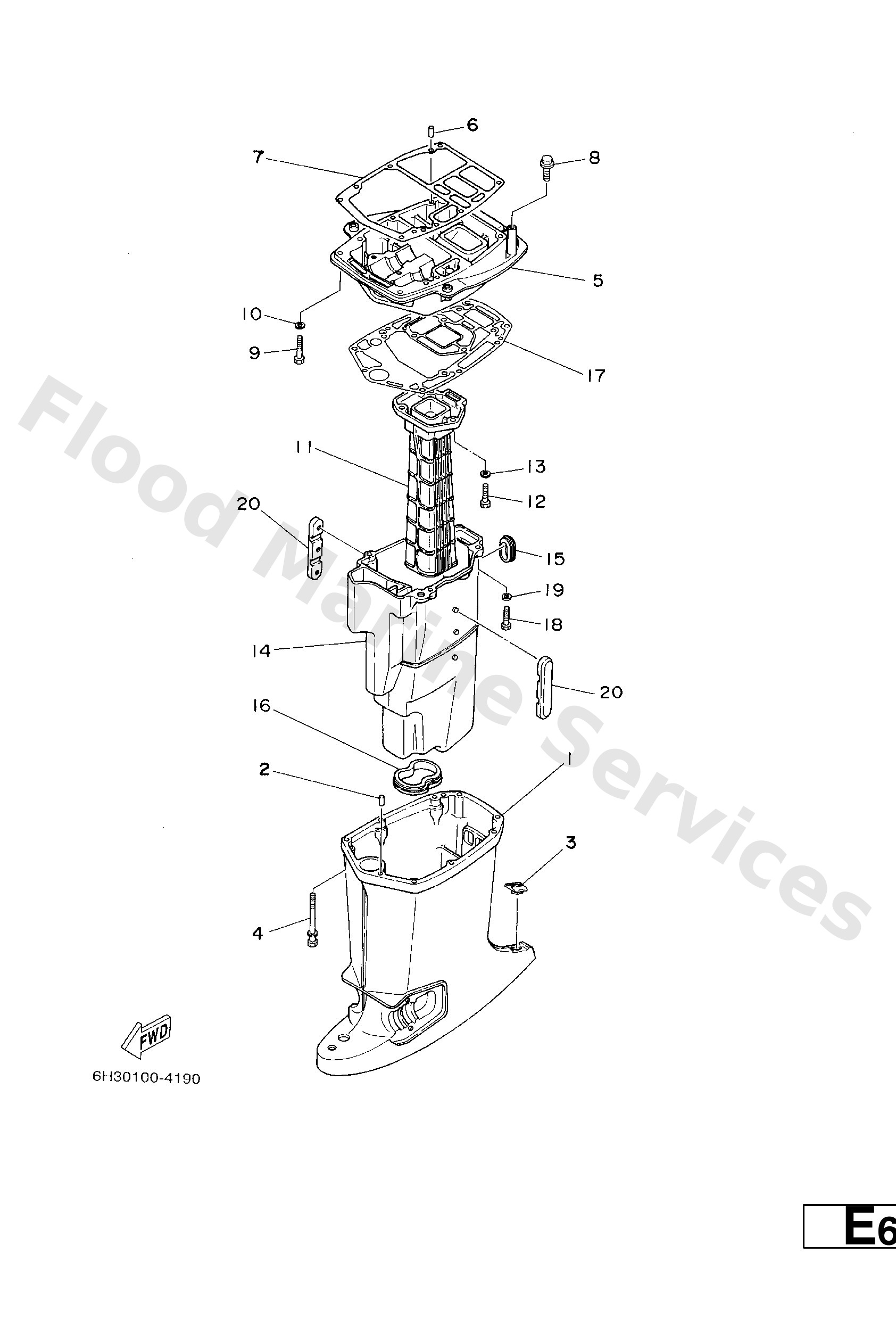

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6H3−45111−11−4D
L
Casing, upper
Loading…
↗
2
93606−12019
Pin, dowel (614)
Loading…
↗
3
6H3−45155−00
Cap
Loading…
↗
4
90119−08M81
Bolt, with washer
Loading…
↗
5
6H3−41137−01−94
Guide, exhaust
Loading…
↗
7
6H3−45113−A0
Gasket, upper casing
Loading…
↗
8
90119−08M79
Bolt, hexagon (fj1)
Loading…
↗
9
97075−08035
Bolt(70w)
Loading…
↗
10
92995−08100
Ybs67-8 washer, spring
Loading…
↗
11
6H3−41131−00−5B
Manifold, ext
Loading…
↗
11
6H2−41131−00−5B
Manifold, ext. 1
Loading…
↗
12
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
14
6H3−14711−10−5B
L
Muffler 1
Loading…
↗
15
6H3−45127−00
Seal 1
Loading…
↗
16
6H3−45123−00
Gasket, muffler
Loading…
↗
17
6H3−45114−A1
Gasket, upper casing
Loading…
↗
20
6H3−14737−10
L
Damper, muffler
Loading…
↗
