55BET (2002)
UPPER CASING

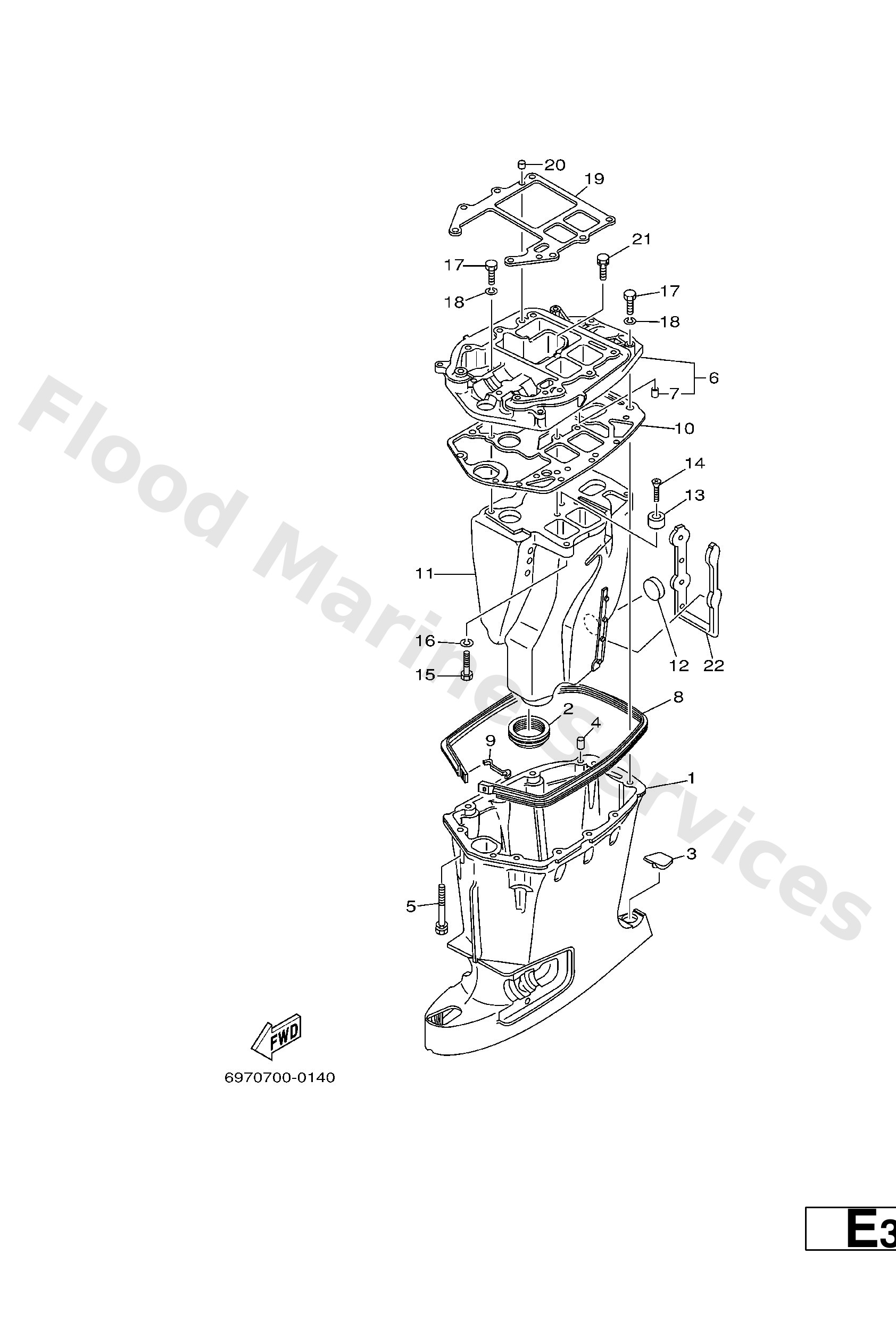

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
69145111134D
Casing, upper
Loading…
↗
2
6634512300
Gasket, muffler
Loading…
↗
3
663--45155--10
Cap
Loading…
↗
4
93606--12019
Pin, dowel (614)
Loading…
↗
5
90119--08M82
Bolt, with washer(697)
Loading…
↗
6
66341137045B
Guide, exhaust
Loading…
↗
7
9038602M04
Bushing (663)
Loading…
↗
8
6634512700
Seal 1
Loading…
↗
9
6634512900
Hook, damper seal
Loading…
↗
10
69745114A0
Gasket,upper casing 2
Loading…
↗
11
66314711125B
Muffler
Loading…
↗
12
9033430017
Plug strait(663)
Loading…
↗
13
663--45251--00
Anode
Loading…
↗
14
90152--06M01
Screw, countersunk
Loading…
↗
15
97075--08035
Bolt(70w)
Loading…
↗
16
92995--08100
Ybs67-8 washer, spring
Loading…
↗
17
97075--08030
Bolt, hexagon (fj1)
Loading…
↗
19
69645113A0
Gasket,upper casing
Loading…
↗
21
9757508440
Bolt, with washer
Loading…
↗
22
663--14737--10
Damper, muffler
Loading…
↗
