6CMH (2012)
UPPER CASING

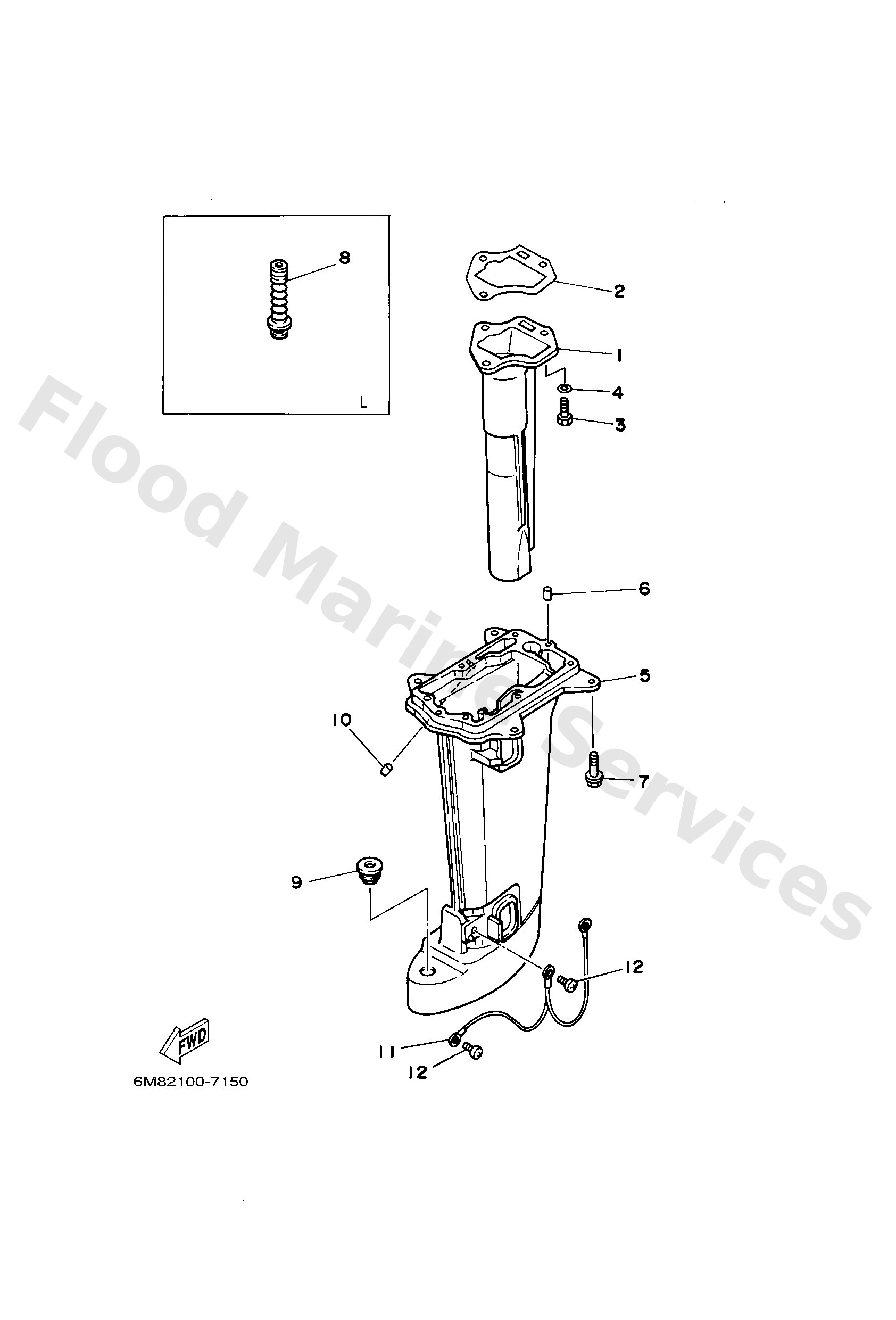

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6N0G113100CA
Manifold, Ext. 1
Loading…
↗
1
6M8G113100CA
Manifold, Ext. 1
Loading…
↗
2
6G141133A0
Gasket, exhaust manifold 1
Loading…
↗
3
9709506020
Bolt(7u8)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
6N0G5111104D
L(22.2")
Casing, upper
Loading…
↗
5
6N0G5111004D
S(17.2")
Casing, upper
Loading…
↗
6
9360408062
Pin,dowel (626)
Loading…
↗
7
9589506030
Bolt, flange deep recess
Loading…
↗
8
6554414700
L(22.2")
Boot, shift rod
Loading…
↗
9
9048020M29
S(17.2")
Grommet (6g1)
Loading…
↗
10
6G14513500
Pipe 1
Loading…
↗
11
6G18214900
Wire, lead 3
Loading…
↗
12
9788506008
Screw, pan head(6a3)
Loading…
↗
