6DMH (2002)
UPPER CASING

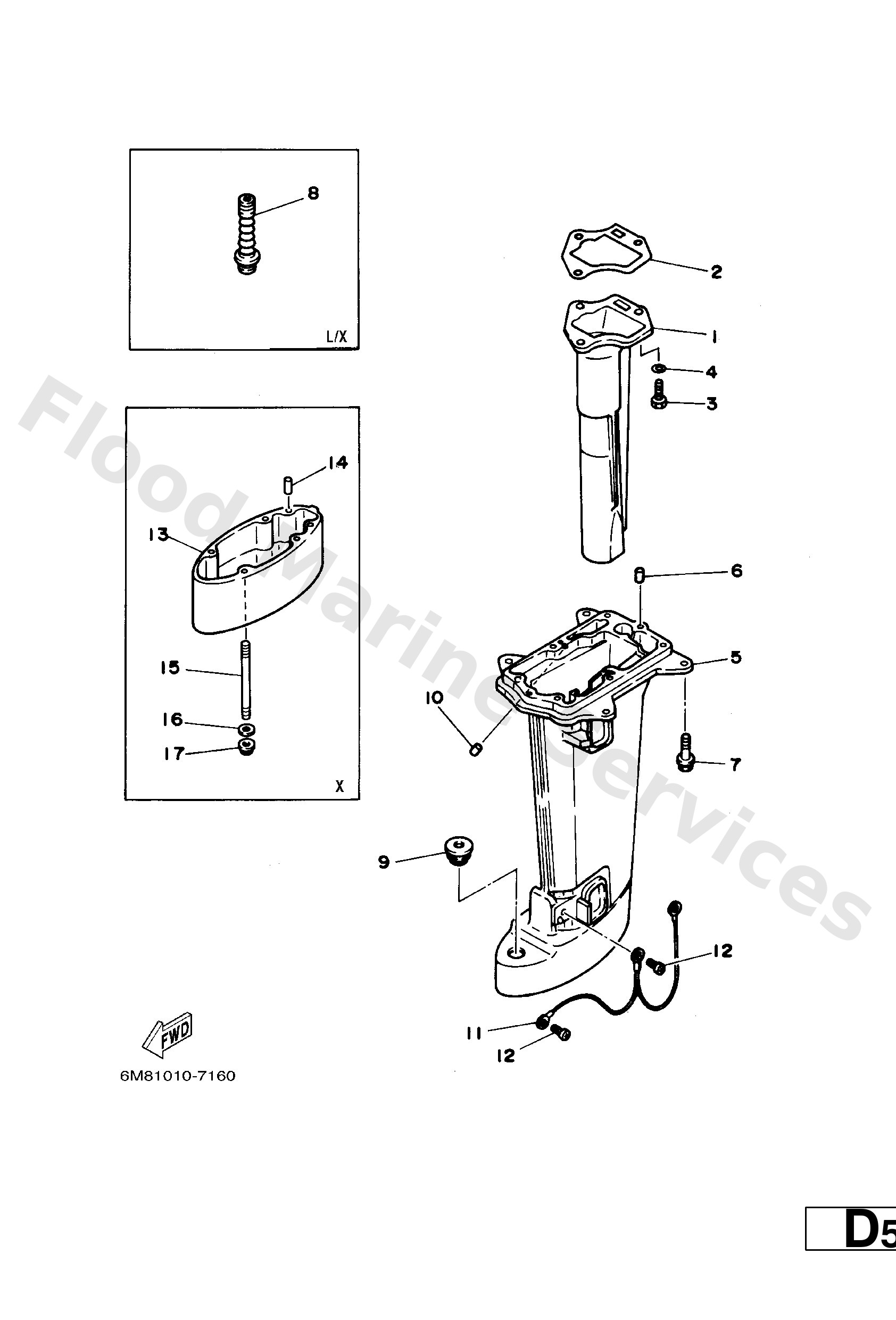

Diagram: UPPER CASING
Parts List
Reference
Description
Price
2
6G1--41133--A0
Gasket, exhaust manifold 1
Loading…
↗
3
97095--06020
Bolt(7u8)
Loading…
↗
4
92995--06600
Washer, plain (646)
Loading…
↗
14
93604--08062
X
Pin,dowel (626)
Loading…
↗
7
95895--06030
Bolt, flange deep recess
Loading…
↗
8
655--44147--00
L,X
Boot, shift rod
Loading…
↗
9
90480--20M29
S
Grommet (6g1)
Loading…
↗
10
6G1--45135--00
Pipe 1
Loading…
↗
11
6G1--82149--00
Wire, lead 3
Loading…
↗
12
97885--06008
Screw, pan head(6a3)
Loading…
↗
15
9011606M18
X
Bolt, Stud
Loading…
↗
16
92990--06600
X
Washer, plain (646)
Loading…
↗
17
95780--06300
X
Nut, nylon (6g1)
Loading…
↗
