Yamaha Outboard Parts - UPPER CASING - 75CETO (2002) | Flood Marine
New Search
Parts
New Outboards
Home
75CETO (2002)
UPPER CASING

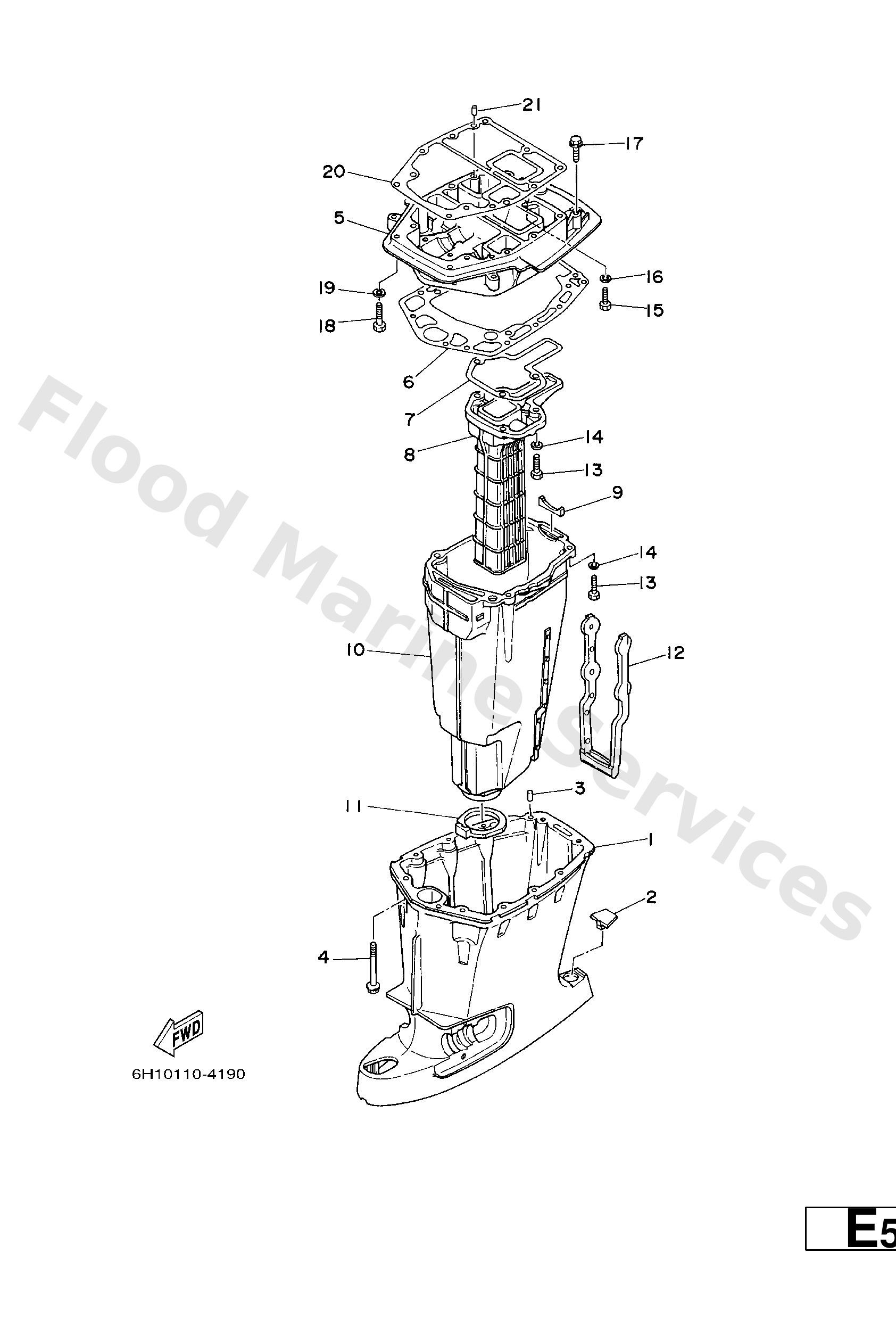

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
688−45111−04−4D
Casing, upper
Loading…
↗
2
663−45155−10
Cap
Loading…
↗
3
93606−12019
Pin, dowel (614)
Loading…
↗
4
90119−08M80
Bolt, with washer(688)
Loading…
↗
5
688−41137−03−94
Guide, exhaust
Loading…
↗
6
688−45114−A1
Gasket, upper casing
Loading…
↗
7
688−41134−A0
Gasket, exhaust manifold
Loading…
↗
8
688−41131−00−5B
Manifold, ext. 1
Loading…
↗
8
692−41131−00−5B
Manifold, ext. 1
Loading…
↗
9
688−41133−00
Gasket, exhaust manifold 1
Loading…
↗
10
688−14711−01−5B
Muffler 1
Loading…
↗
11
688−45123−00
Gasket, muffler
Loading…
↗
12
663−14737−10
Damper, muffler
Loading…
↗
13
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
14
92995−08100
Ybs67-8 washer, spring
Loading…
↗
15
97075−08025
Bolt, hexagon deep recess
Loading…
↗
17
90119−08M79
Bolt, hexagon (fj1)
Loading…
↗
18
97075−08035
Bolt(70w)
Loading…
↗
20
688−45113−A0
Gasket, upper casing
Loading…
↗
