85AED−TUNA (2003)
UPPER CASING

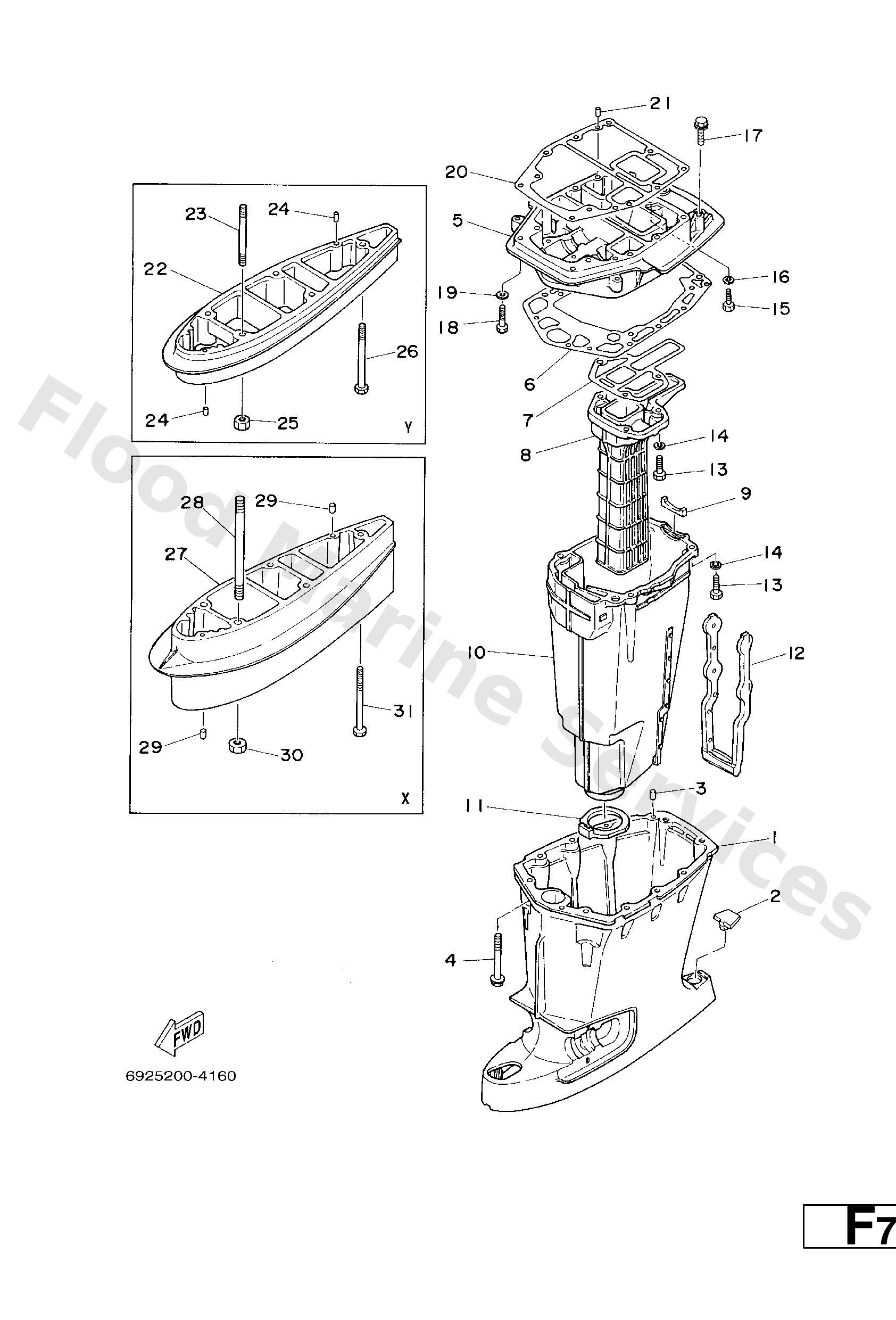

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
68845111044D
Casing, upper
Loading…
↗
2
663--45155--10
Cap
Loading…
↗
24
93606--12019
Y
Pin, dowel (614)
Loading…
↗
4
90119--08M80
Bolt, with washer(688)
Loading…
↗
5
688411370394
Guide, exhaust
Loading…
↗
6
688--45114--A1
Gasket, upper casing
Loading…
↗
7
688--41134--A0
Gasket, exhaust manifold
Loading…
↗
8
68841131005B
Manifold, ext. 1
Loading…
↗
9
688--41133--00
Gasket, exhaust manifold 1
Loading…
↗
10
68814711015B
Muffler 1
Loading…
↗
11
688--45123--00
Gasket, muffler
Loading…
↗
12
663--14737--10
Damper, muffler
Loading…
↗
13
97075--08030
Bolt, hexagon (fj1)
Loading…
↗
14
92995--08100
Ybs67-8 washer, spring
Loading…
↗
15
97075--08025
Bolt, hexagon deep recess
Loading…
↗
17
90119--08M79
Bolt, hexagon (fj1)
Loading…
↗
18
97075--08035
Bolt(70w)
Loading…
↗
20
688--45113--A0
Gasket, upper casing
Loading…
↗
22
69645211014D
Y
Extension
Loading…
↗
23
90116--10M31
Y
Bolt, stud(6a3)
Loading…
↗
25
95380--10600
Y
Nut(624)
Loading…
↗
26
9011908M85
Y
Bolt, with washer
Loading…
↗
27
68845211014D
X
Extension
Loading…
↗
28
90116--10M05
X
Bolt, stud (688)
Loading…
↗
31
90119--08M86
X
Bolt, with washer(62x)
Loading…
↗
