9.9FMH (2023)
UPPER CASING

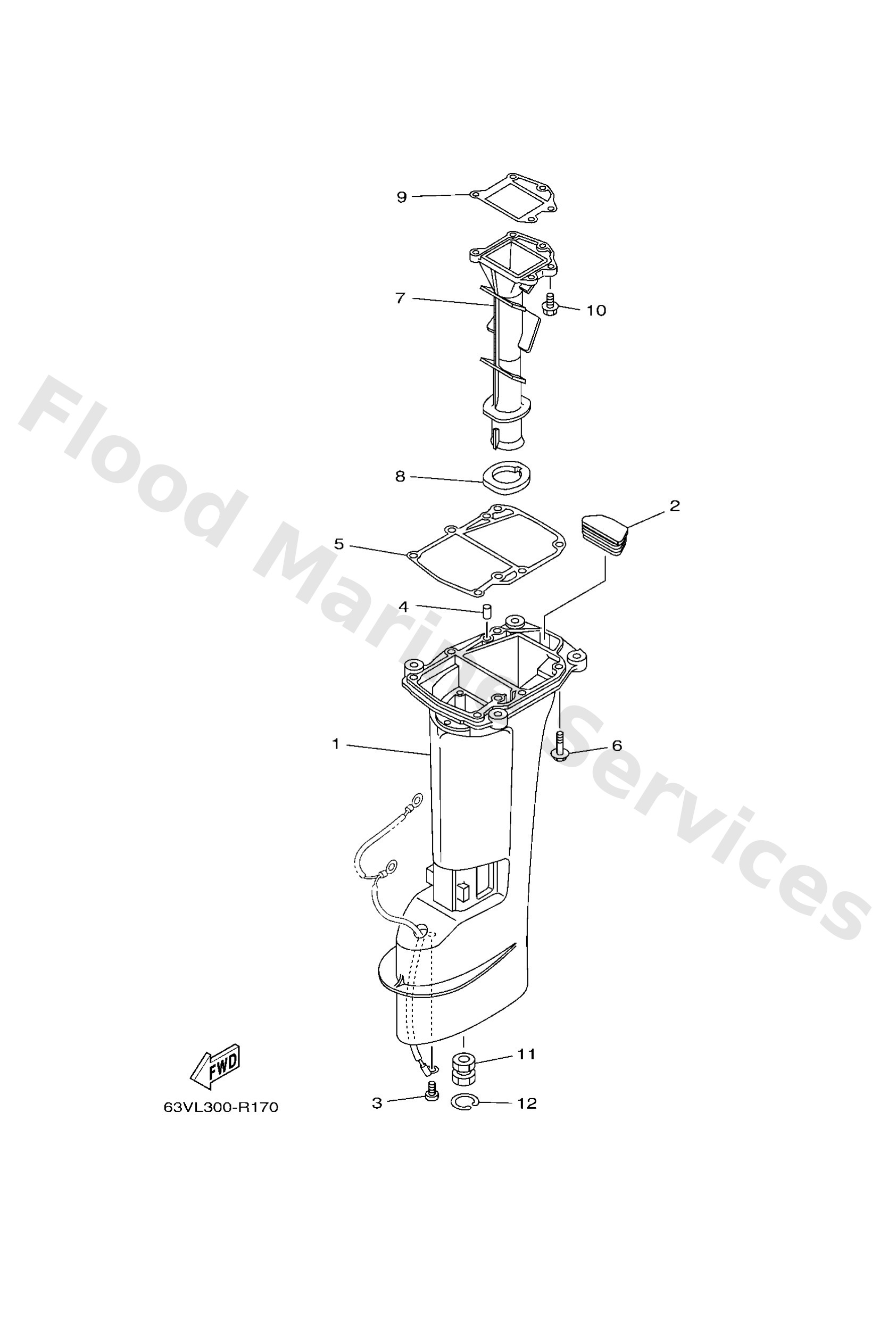

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
63V45111158D
L(22.3")
Casing, upper
Loading…
↗
1
63V45111058D
S(17.3")
Casing, upper
Loading…
↗
2
63V4512601
Plate, seal damper
Loading…
↗
3
9015706M06
Screw, pan head(6m7)
Loading…
↗
4
9360612019
Pin, dowel (614)
Loading…
↗
5
63V45113A1
Gasket, upper casing
Loading…
↗
6
97E7508530
Bolt, hexagon w/w deep recess
Loading…
↗
7
65F4113100CA
Manifold, ext. 1
Loading…
↗
8
63V4113501
Gasket, exhaust manifold
Loading…
↗
9
63V41133A1
Gasket, exhaust manifold 1
Loading…
↗
10
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
11
6824531800
L(22.3")
Bushing, drive shaft
Loading…
↗
12
9342030042
L(22.3")
Circlip (650)
Loading…
↗
