90AETO (2008)
UPPER CASING

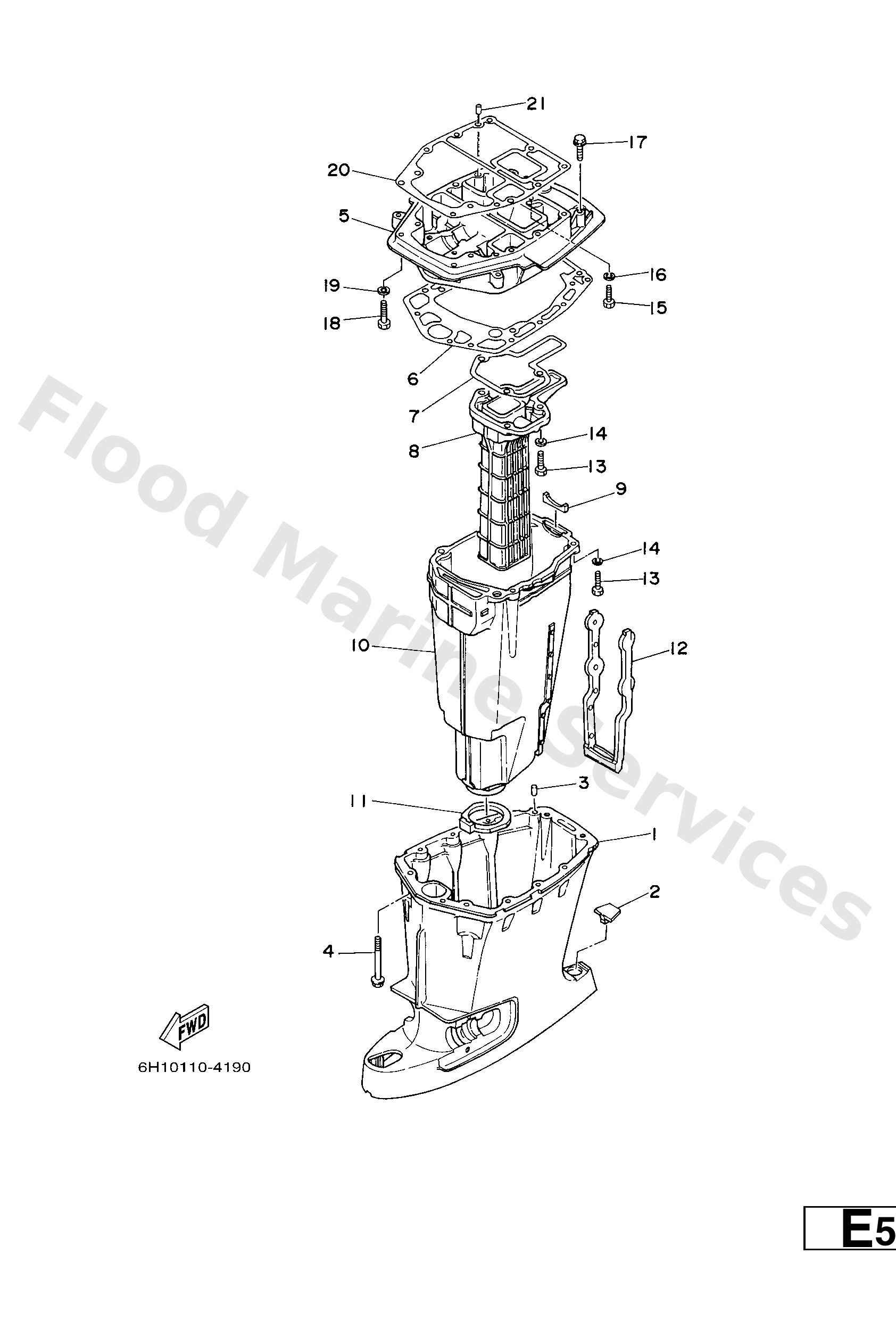

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
68845111044D
Casing, upper
Loading…
↗
2
6634515510
Cap
Loading…
↗
3
9360612019
Pin, dowel (614)
Loading…
↗
4
9011908M80
Bolt, with washer(688)
Loading…
↗
5
688411370394
Guide, exhaust
Loading…
↗
6
68845114A1
Gasket, upper casing
Loading…
↗
7
68841134A0
Gasket, exhaust manifold
Loading…
↗
8
68841131005B
Manifold, ext. 1
Loading…
↗
8
69241131005B
Manifold, ext. 1
Loading…
↗
9
6884113300
Gasket, exhaust manifold 1
Loading…
↗
10
68814711015B
Muffler 1
Loading…
↗
11
6884512300
Gasket, muffler
Loading…
↗
12
6631473710
Damper, muffler
Loading…
↗
13
9707508030
Bolt, hexagon (fj1)
Loading…
↗
14
9299508100
Ybs67-8 washer, spring
Loading…
↗
15
9707508025
Bolt, hexagon deep recess
Loading…
↗
17
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
18
9707508035
Bolt(70w)
Loading…
↗
20
68845113A0
Gasket, upper casing
Loading…
↗
