E40XMH (2003)
UPPER CASING

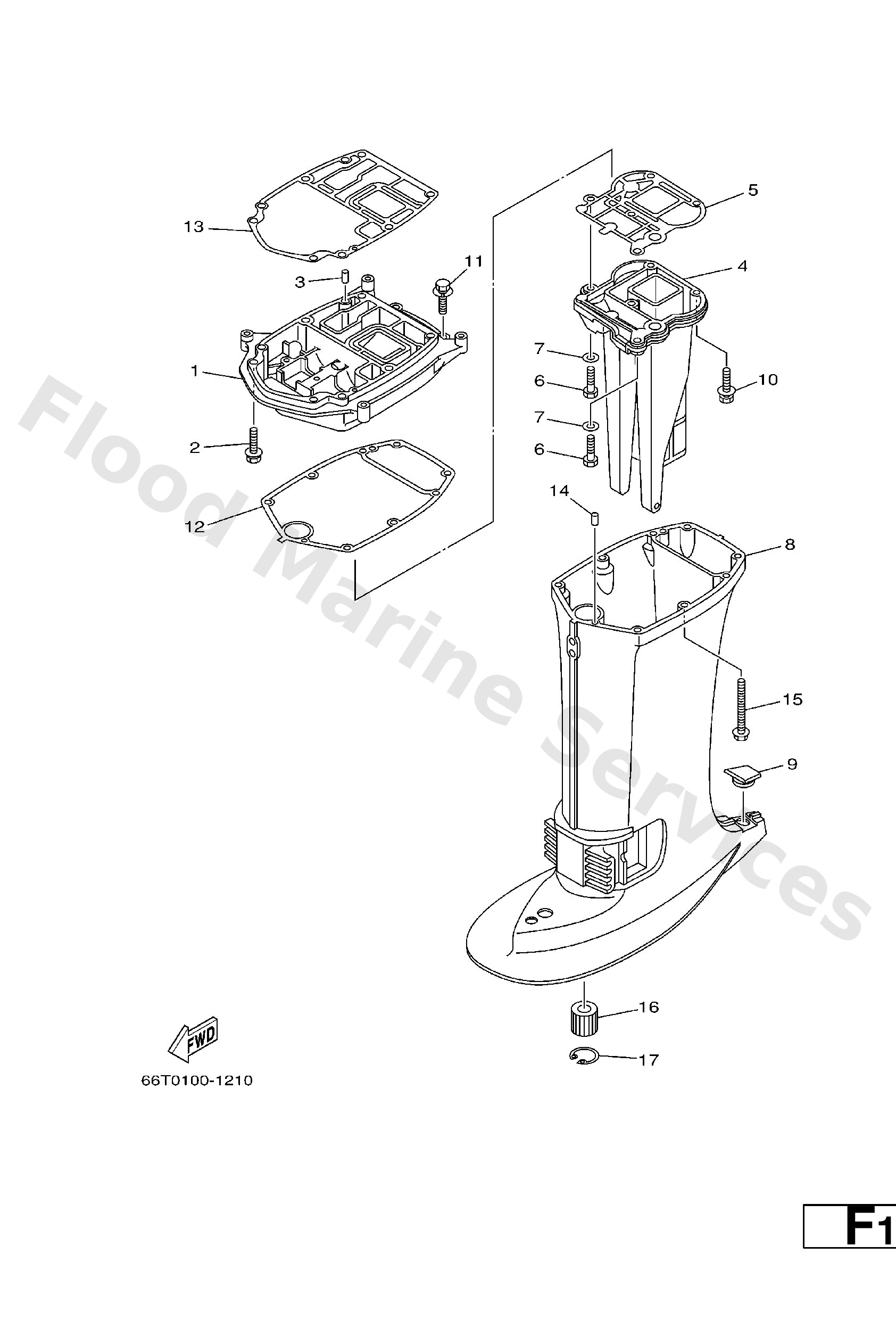

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
66T−41137−00−94
Guide, exhaust
Loading…
↗
2
90119−08M79
Bolt, hexagon (fj1)
Loading…
↗
3
93606−12019
Pin, dowel (614)
Loading…
↗
4
66T−41131−10−5B
L
Manifold, ext. 1
Loading…
↗
5
66T−41133−A0
Gasket, exhaust manifold 1
Loading…
↗
6
97075−08030
Bolt, hexagon (fj1)
Loading…
↗
7
92995−08600
Washer, plain (663)
Loading…
↗
8
66T−45111−10−4D
L
Casing, upper
Loading…
↗
9
63D−45155−00
Cap
Loading…
↗
10
97575−08545
Bolt, hexagon w/w deep recess
Loading…
↗
12
66T−45114−A0
Gasket, upper casing
Loading…
↗
13
66T−45113−A0
Gasket, upper casing
Loading…
↗
15
90119−08M42
Bolt, with washer
Loading…
↗
16
679−45318−00
L
Bushing, drive shaft 3
Loading…
↗
17
93420−30042
L
Circlip (650)
Loading…
↗
