E60HMHD (2009)
UPPER CASING

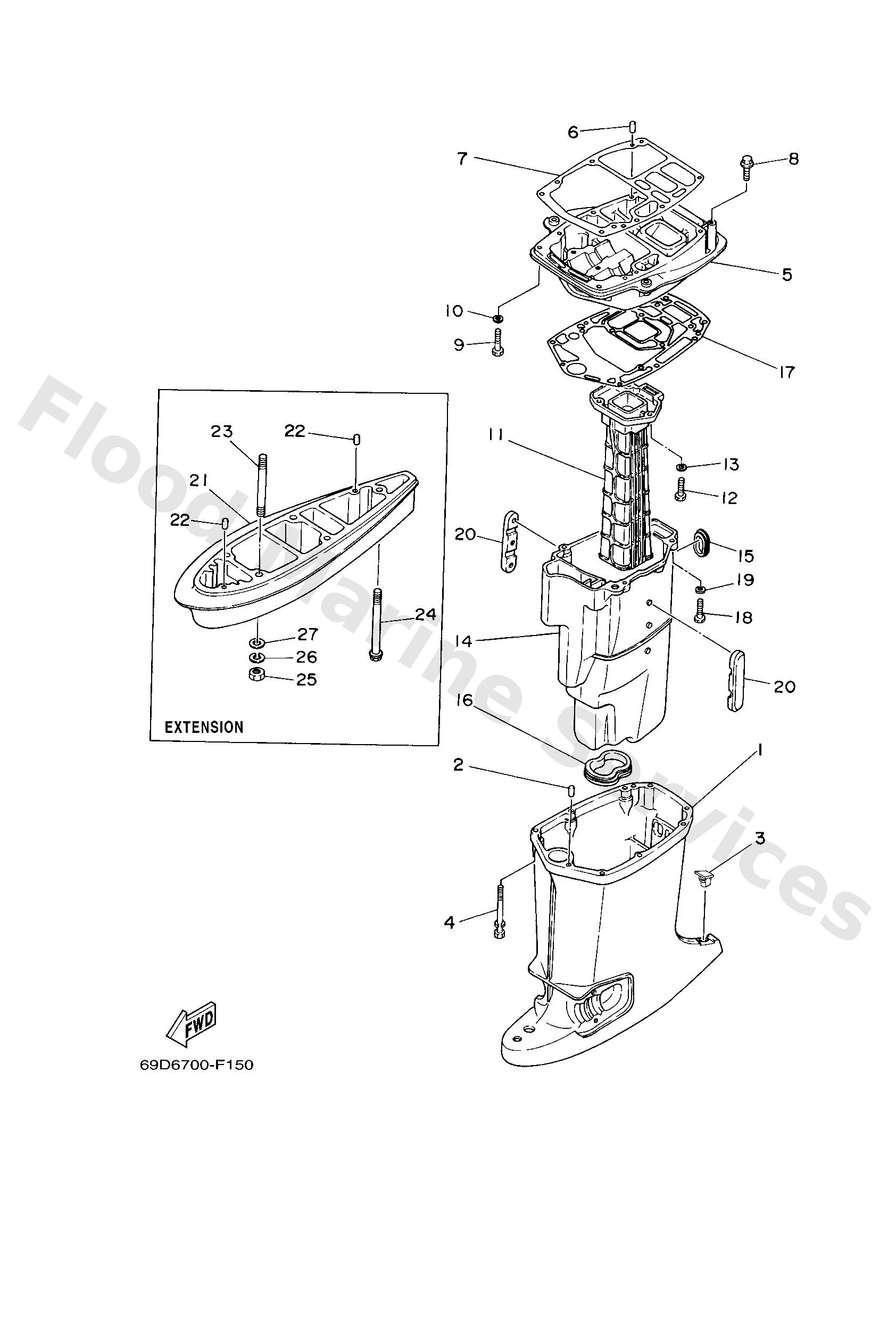

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6H345111124D
L(22.5")
Casing, upper
Loading…
↗
2
9360612019
Pin, dowel (614)
Loading…
↗
3
6C54515500
Cap
Loading…
↗
4
9011908M81
Bolt, with washer
Loading…
↗
5
6H3411370194
Guide, exhaust
Loading…
↗
7
6H345113A0
Gasket, upper casing
Loading…
↗
8
9011908M79
Bolt, hexagon (fj1)
Loading…
↗
9
9707508035
Bolt(70w)
Loading…
↗
10
9299508100
Ybs67-8 washer, spring
Loading…
↗
11
6H241131005B
Manifold, ext. 1
Loading…
↗
12
9707508030
Bolt, hexagon (fj1)
Loading…
↗
14
6H314711115B
L(22.5")
Muffler 1
Loading…
↗
15
6H34512700
Seal 1
Loading…
↗
16
6H34512300
Gasket, muffler
Loading…
↗
17
6H345114A1
Gasket, upper casing
Loading…
↗
20
6H31473710
L(22.5")
Damper, muffler
Loading…
↗
21
69645211014D
Extension
Loading…
↗
23
9011610M31
Bolt, stud(6a3)
Loading…
↗
24
9011908M85
Bolt, with washer
Loading…
↗
25
9538010600
Nut(624)
Loading…
↗
26
9299010100
Ybs67-10 washer, spring
Loading…
↗
27
9299010600
Washer, plate
Loading…
↗
