E60HMHD (2018)
UPPER CASING

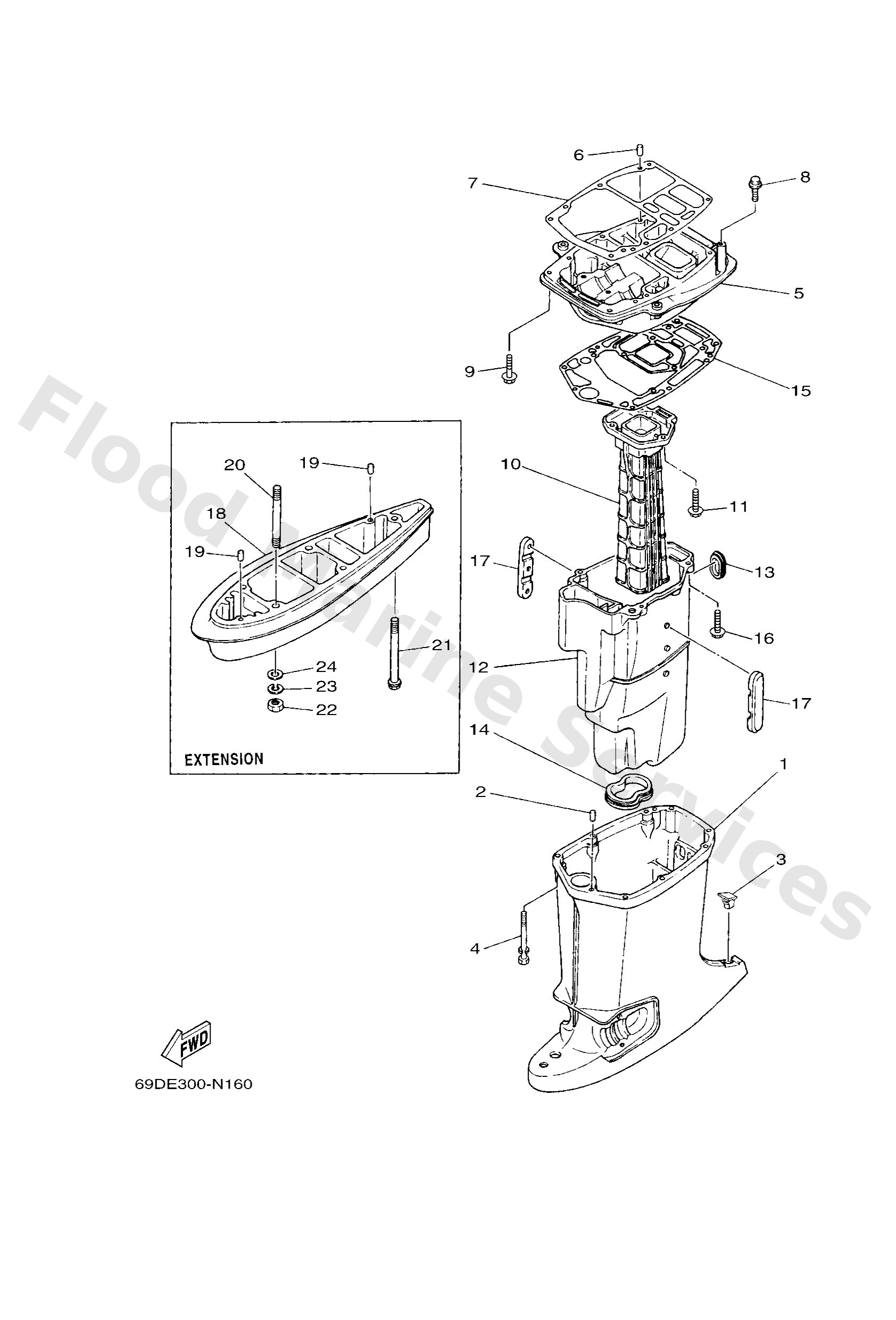

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
6H345111128D
L(22.5")
Casing, upper
Loading…
↗
2
9360612019
Pin, dowel (614)
Loading…
↗
3
6C54515500
Cap
Loading…
↗
4
9011908M81
Bolt, with washer
Loading…
↗
5
6H34113701CA
Guide, exhaust
Loading…
↗
7
6H345113A0
Gasket, upper casing
Loading…
↗
8
9757508530
Bolt, hexagon w/w deep recess
Loading…
↗
9
9757508535
Bolt(70w)
Loading…
↗
10
6H24113100CA
Manifold, ext. 1
Loading…
↗
12
6H31471111CA
L(22.5")
Muffler 1
Loading…
↗
13
6H34512700
Seal 1
Loading…
↗
14
6H34512300
Gasket, muffler
Loading…
↗
15
6H345114A1
Gasket, upper casing
Loading…
↗
17
6H31473710
L(22.5")
Damper, muffler
Loading…
↗
18
69645211018D
Extension
Loading…
↗
20
9011610M31
Bolt, stud(6a3)
Loading…
↗
21
9011908155
Bolt, with washer
Loading…
↗
22
9538010600
Nut(624)
Loading…
↗
23
9299010100
Ybs67-10 washer, spring
Loading…
↗
24
9299510600
Washer, plate
Loading…
↗
