E75BEHD (2025)
UPPER CASING

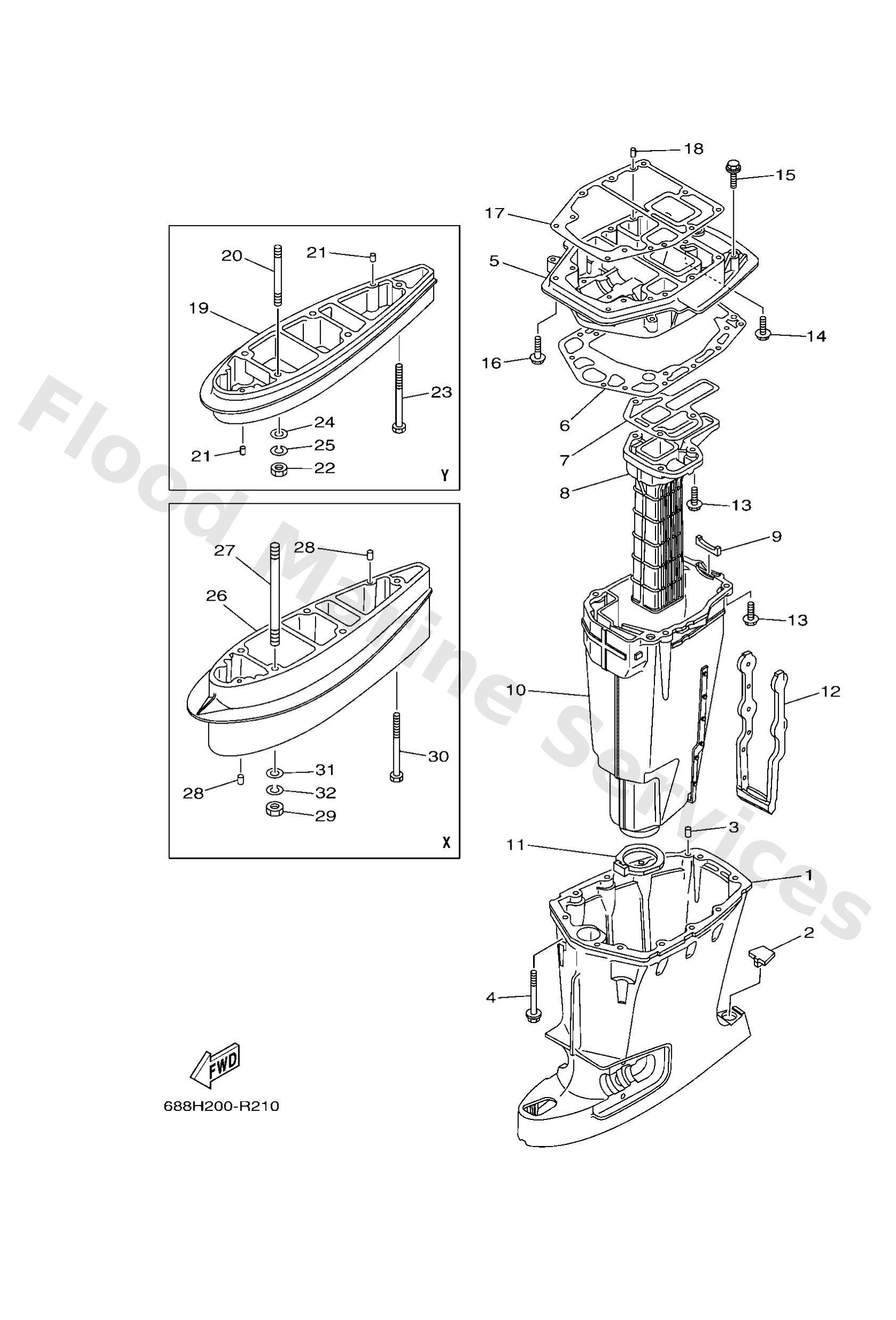

Diagram: UPPER CASING
Parts List
Reference
Description
Price
1
68845111048D
Casing, upper
Loading…
↗
2
6634515510
Cap
Loading…
↗
21
9360612019
Y(22.5")
Pin, dowel (614)
Loading…
↗
4
9011908M80
Bolt, with washer(688)
Loading…
↗
5
6884113709CA
Guide, exhaust
Loading…
↗
6
68845114A1
Gasket, upper casing
Loading…
↗
7
68841134A0
Gasket, exhaust manifold
Loading…
↗
8
6884113100CA
Manifold, ext. 1
Loading…
↗
8
6884113110CA
MHD-FOR NME
Manifold, Ext. 1
Loading…
↗
9
6884113301
Gasket, exhaust manifold 1
Loading…
↗
10
6881471101CA
Muffler 1
Loading…
↗
10
6881471110CA
MHD-FOR NME
Muffler 1
Loading…
↗
11
6884512300
Gasket, muffler
Loading…
↗
12
6631473710
Damper, muffler
Loading…
↗
13
97E7508530
Bolt, hexagon w/w deep recess
Loading…
↗
14
97E7508525
Bolt, hexagon w/w deep recess
Loading…
↗
16
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
17
68845113A0
Gasket, upper casing
Loading…
↗
19
69645211018D
Y(22.5")
Extension
Loading…
↗
20
9011610M31
Y(22.5")
Bolt, stud(6a3)
Loading…
↗
22
9538010600
Y(22.5")
Nut(624)
Loading…
↗
23
9011908155
Y(22.5")
Bolt, with washer
Loading…
↗
24
9299510600
Y(22.5")
Washer, plate
Loading…
↗
25
9299010100
Y(22.5")
Ybs67-10 washer, spring
Loading…
↗
26
68845211018D
X(25.5")
Extension
Loading…
↗
27
9011610M05
X(25.5")
Bolt, stud (688)
Loading…
↗
30
9011908158
X(25.5")
Bolt, with washer
Loading…
↗
